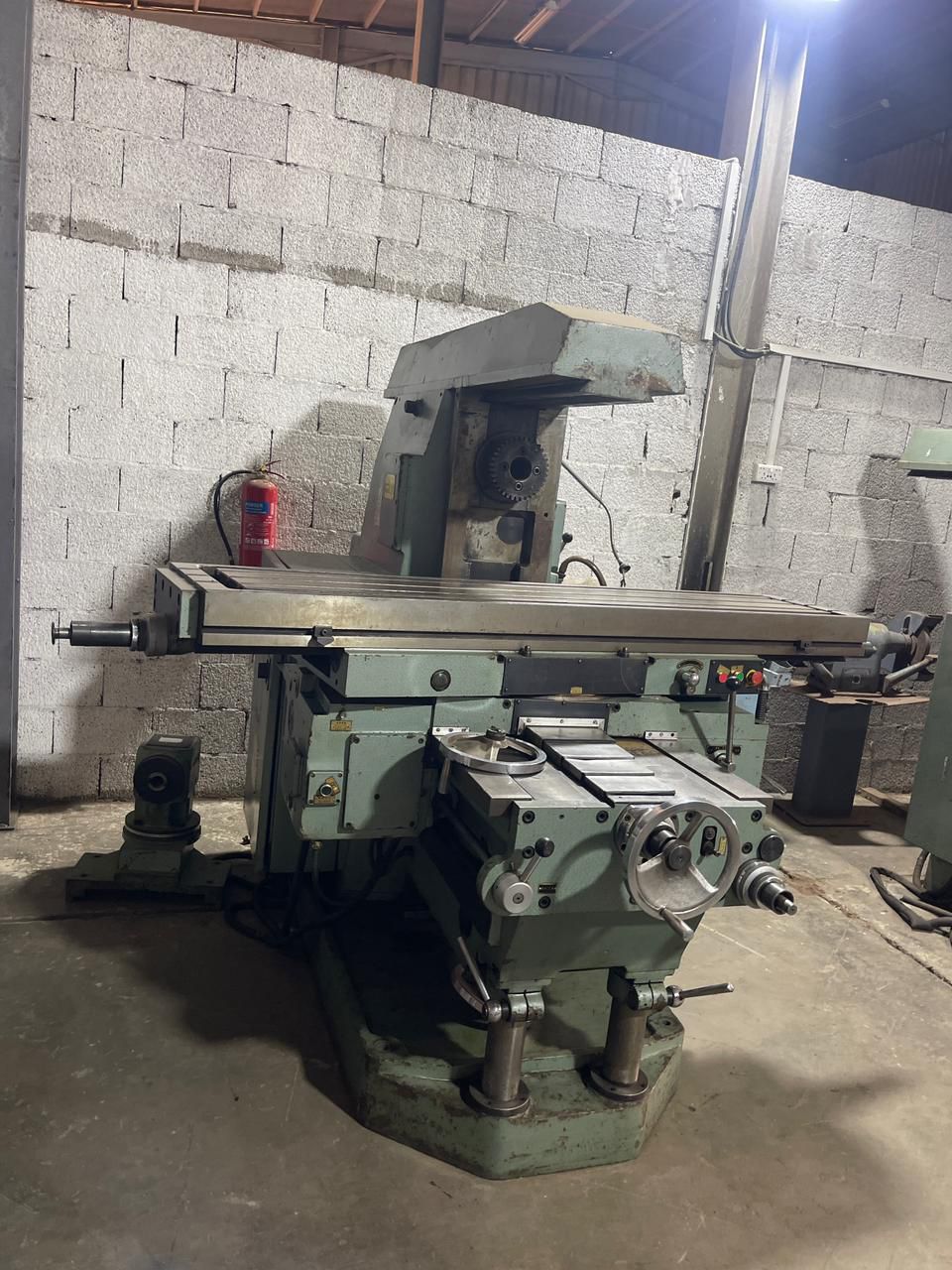

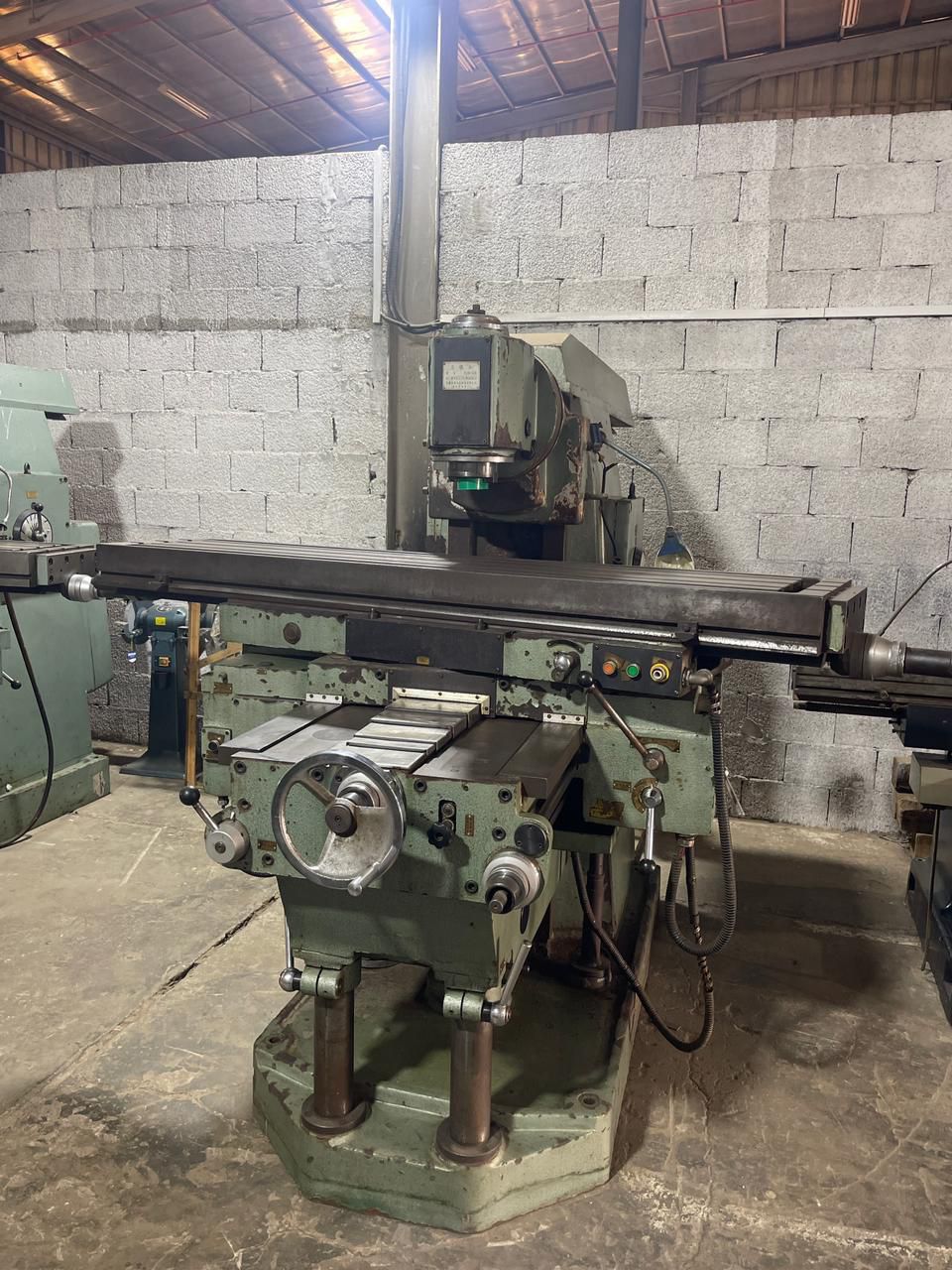

AUTOMATIC MILLING MACHINE NUMBER 5

AUTOMATIC  MILLING MACHINE NUMBER 5

Country of Origin: China

General Information

• Machine Type: Automatic CNC Milling Machine
• Application: Milling, Drilling, Boring, and Tapping Operations
• Suitable Materials: Steel, Stainless Steel, Aluminum, Brass, and Copper

Technical Specifications

Travel Capacity

• X-Axis Travel: 800 mm
• Y-Axis Travel: 500 mm
• Z-Axis Travel: 500 mm

Work Table

• Table Size: 1000 × 500 mm
• Maximum Table Load: 500 kg

Spindle

• Spindle Speed: 8,000 RPM
• Spindle Taper: BT40
• Spindle Motor Power: 7.5 kW

Tool Changer

• Automatic Tool Changer (ATC): 24 Tools

Accuracy

• Positioning Accuracy: ±0.01 mm
• Repeatability: ±0.005 mm

Feed System

• Rapid Feed Rate: 24 m/min
• Drive System: Servo Motors

Power Requirements

• Power Supply: 380V, 50Hz, 3-Phase

Machine Dimensions

• Approximate Weight: 3,000 kg

Standard Features

• Fully Automatic CNC Operation
• Automatic Tool Changer (ATC)
• Automatic Lubrication System
• Automatic Coolant System
• High-Precision Linear Guideways
• Emergency Stop Function
• Full Safety Enclosure
• User-Friendly CNC Control Panel

Included Accessories

• Coolant Tank
• Tool Kit
• Machine Manual
• Work Lamp
• Lubrication Unit
