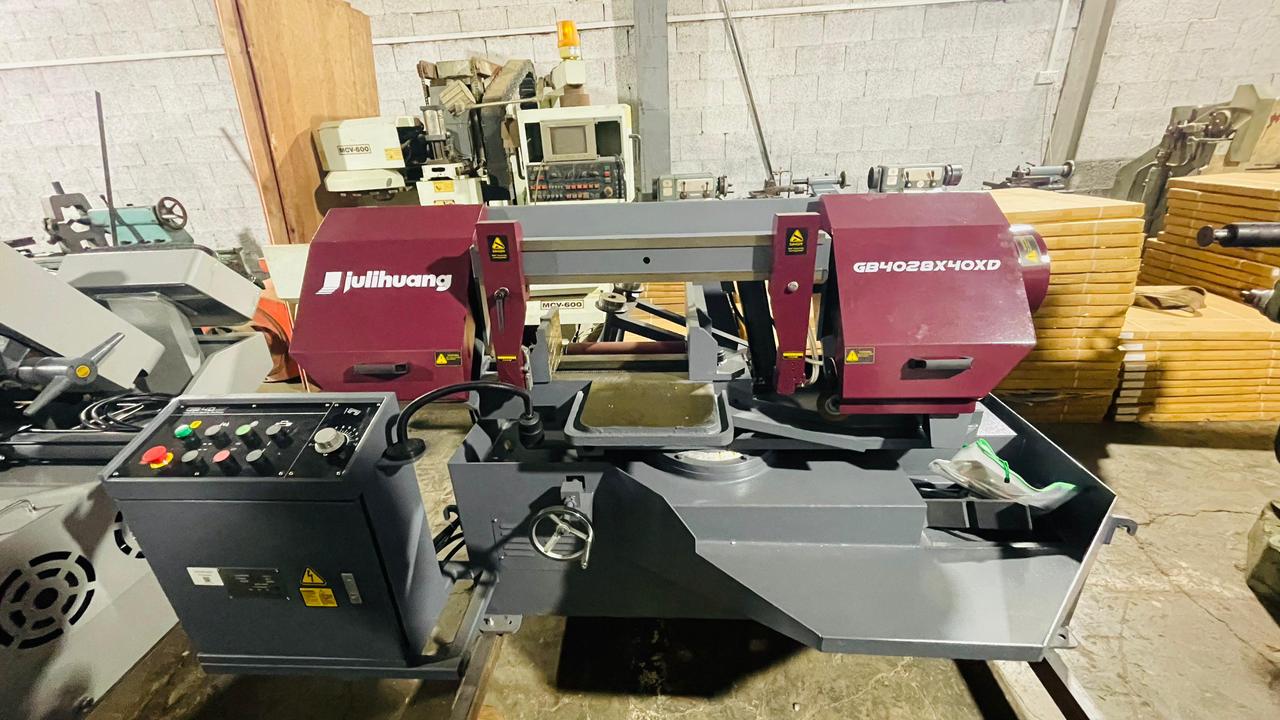

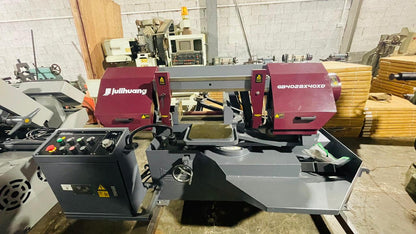

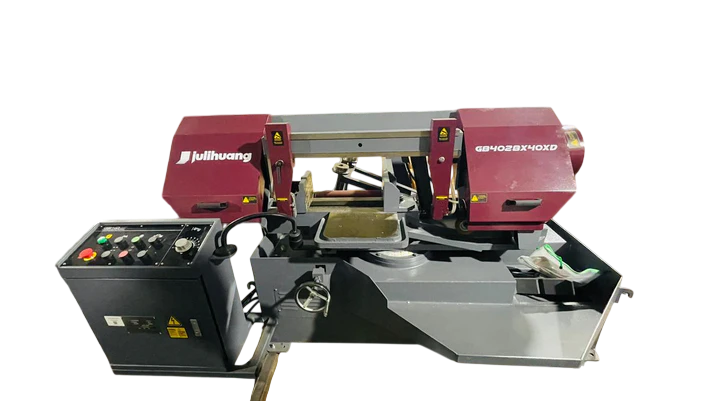

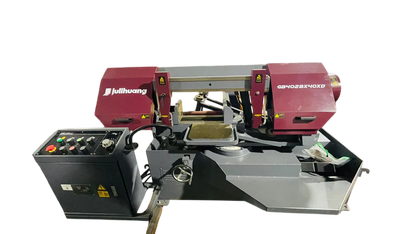

BAND SAW ARI MACHINE GB4028X40XD

BAND SAW MACHINE GB4028X40XD

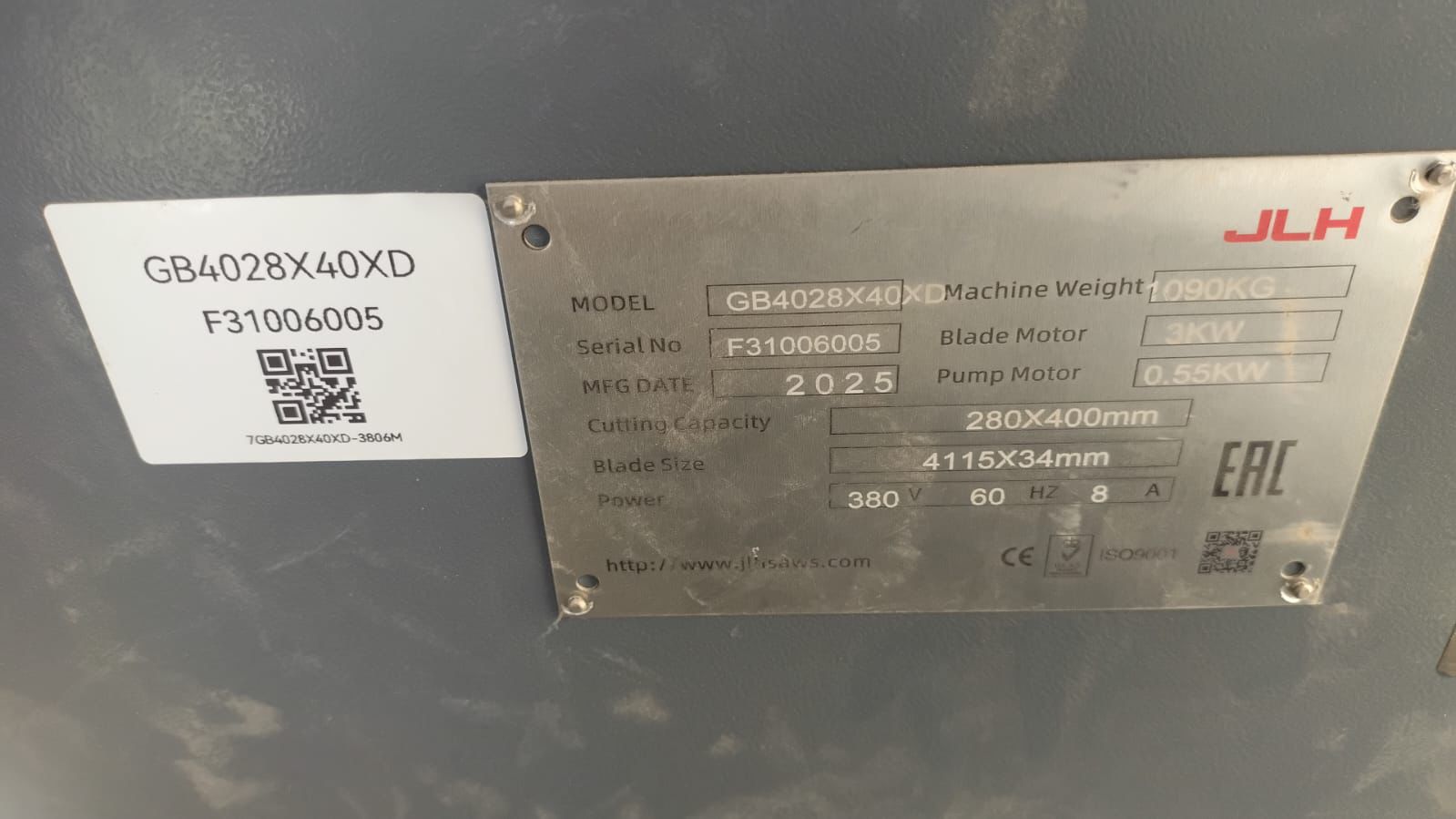

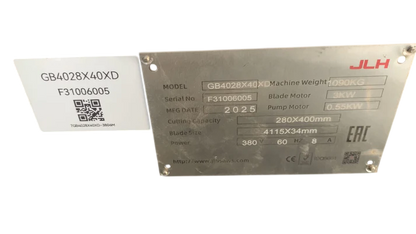

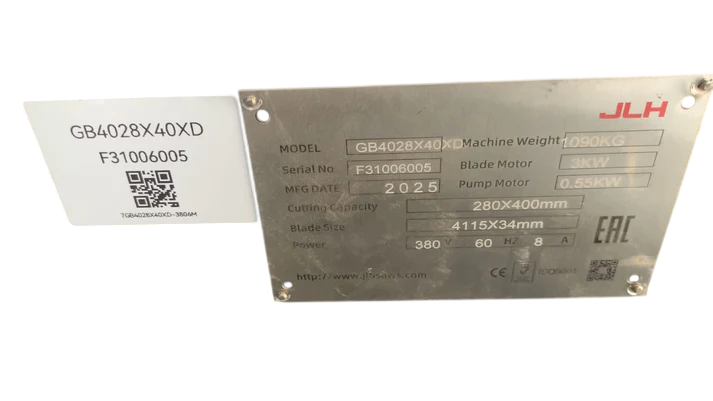

Model: GB4028X40XD
Brand: Julihuang
Type: Hydraulic Horizontal Band Saw
Country of Origin: China

General Application

• Cutting of solid bars, pipes, and structural steel
• Suitable for mild steel, alloy steel, stainless steel, aluminum

Cutting Capacity

• Round Cutting Capacity: 280 mm
• Square Cutting Capacity: 280 × 280 mm
• Rectangular Cutting Capacity: 400 × 280 mm

Blade Specifications

• Blade Size: 34 × 1.1 × 3950 mm
• Blade Speed: 20 / 40 / 60 / 80 m/min (variable)
• Blade Tension: Manual / Hydraulic type

Motors

• Main Motor Power: 3.0 kW (4 HP)
• Hydraulic Motor: 0.75 kW
• Coolant Pump: 0.09 kW

Machine Features

• Fully / Semi automatic operation
• Hydraulic vice clamping system
• Automatic feeding system
• Adjustable cutting speed
• Angle cutting capability: 0° to 45°
• Automatic stop after cut completion

Construction

• Heavy-duty steel frame
• Rigid saw bow design
• Anti-vibration structure
• Precision guide system for smooth cutting

Power Supply

• 380V, 50Hz, 3-phase

Machine Size & Weight

• Dimensions: approx. 2200 × 1200 × 1600 mm
• Weight: approx. 900 – 1200 kg

Standard Accessories

• Band saw blade (1 pc)
• Coolant system
• Hydraulic vice system
• Tool kit
• User manual
