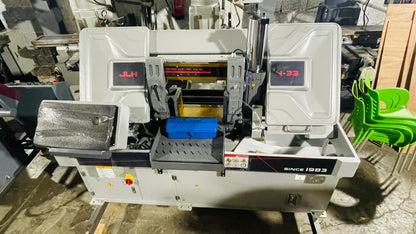

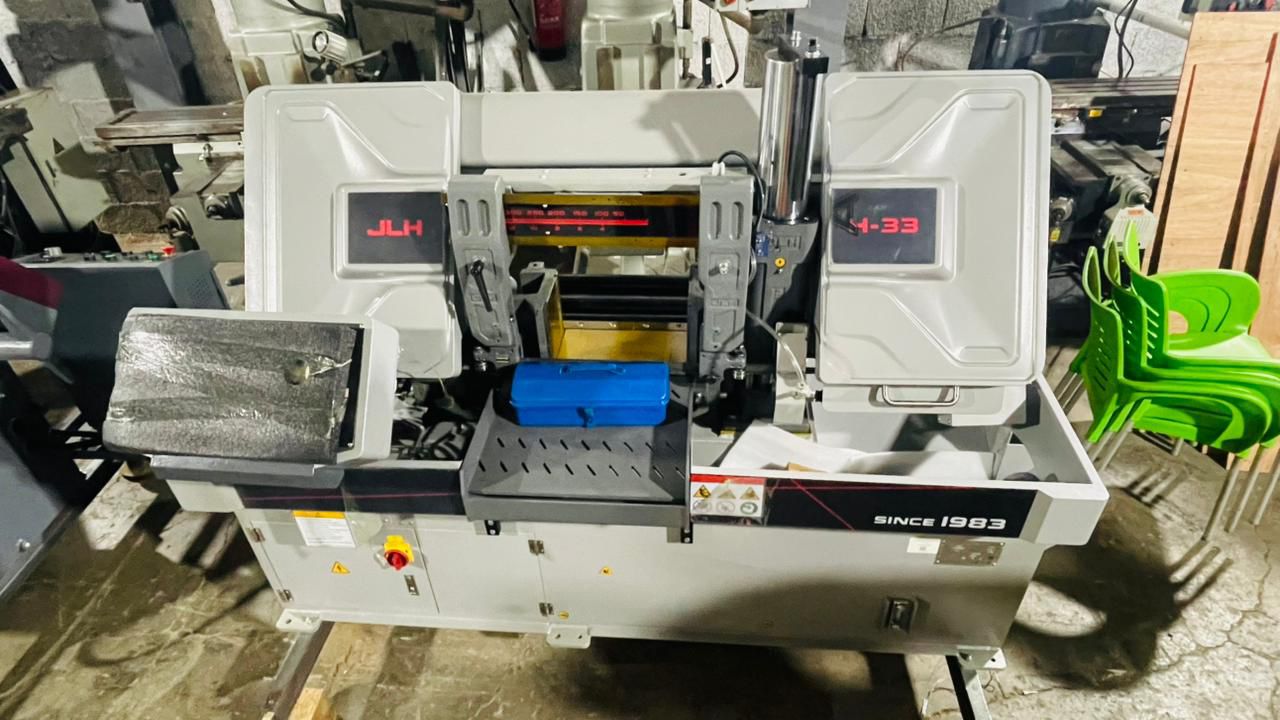

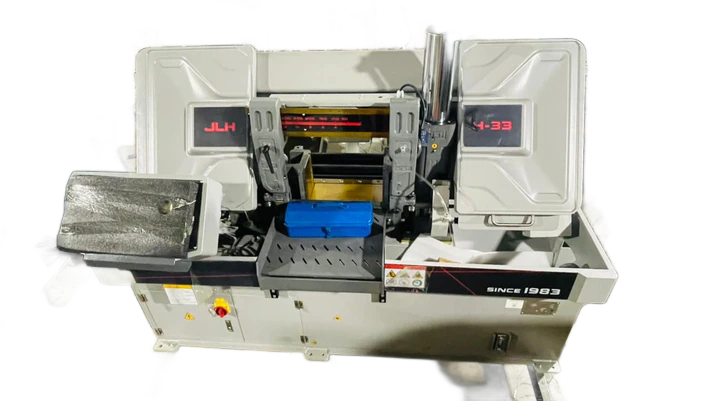

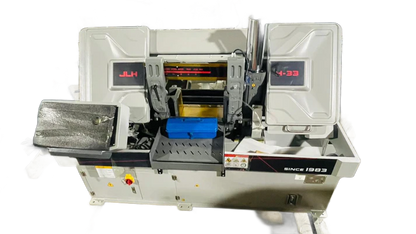

Band Saw Ari Machine H-33 (Automatic – Horizontal Type)

Band Saw Machine H-33 (Automatic – Horizontal Type)

Machine Type: Horizontal Metal Cutting Band Saw
Operation: Fully Automatic / Semi-Automatic
Model (similar): GB4028 / 4028×40 type

Cutting Capacity

• Round solid bar: up to approx. 280 mm
• Square bar: up to approx. 280 × 280 mm
• Rectangular section: up to approx. 400 × 280 mm (varies by model)

Blade System

• Blade size: approx. 27 mm × 0.9 mm × 3500–4000 mm
• Blade speed: 20–80 m/min (variable speed)
• Blade tension: Manual / hydraulic
• Guides: Carbide guide system for accuracy

Motor & Power

• Main motor: 2.2 kW – 3.0 kW
• Hydraulic motor: 0.55 kW – 0.75 kW
• Coolant pump: Included (small capacity)

 Hydraulic System

• Hydraulic vise clamping
• Hydraulic down-feed control
• Automatic lifting of arm after cut

 Machine Features

• Heavy-duty cast iron frame
• Auto material feeding system (roller optional)
• Adjustable cutting pressure
• Coolant system for blade cooling
• Emergency stop switch

 Working Type

• Manual / Semi-auto / Fully automatic cycle cutting
• Suitable for batch production

 Applications

• Steel workshops
• Fabrication industries
• Pipe cutting
• Solid bar cutting
• Tool manufacturing units
