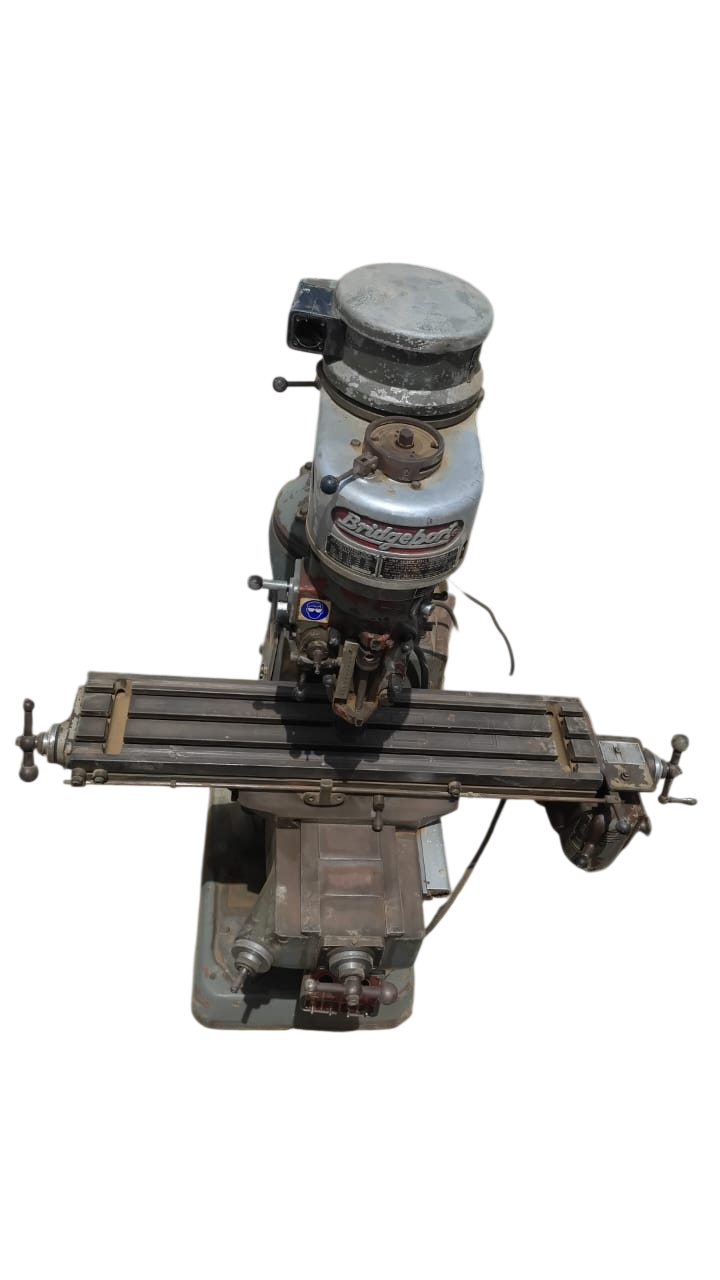

Bridgeport Manual Milling Machine – Made in Italy

General Specifications

• Machine Type: Vertical Turret Milling Machine

• Model: Bridgeport Style Manual Milling Machine

• Country of Origin: Italy

• Condition: Used – Good Working Condition

• Operation: Fully Manual

• Construction: Heavy-Duty Cast Iron Body

• Application: Milling, Drilling, Boring, Slotting, Keyway Cutting, Tool & Die Work

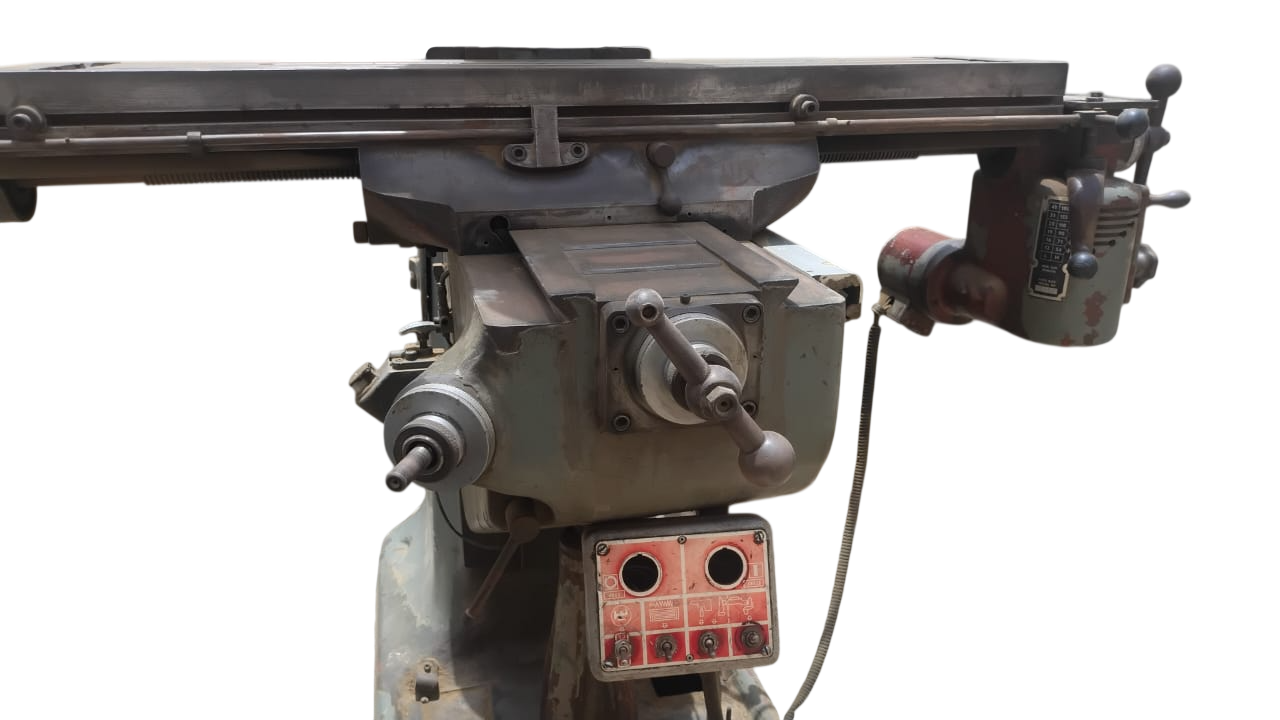

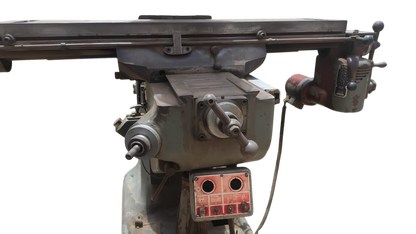

Working Table

Table Dimensions

• Table Length: Approx. 900 – 1250 mm

• Table Width: Approx. 230 – 300 mm

• T-Slots: 3 Slots for Workpiece Clamping

• Precision Ground Table Surface

• Suitable for Vises, Fixtures, and Tooling

Axis Travel

• X-Axis Travel (Longitudinal): 600 – 800 mm

• Y-Axis Travel (Cross): 250 – 350 mm

• Z-Axis Travel (Vertical): 350 – 450 mm

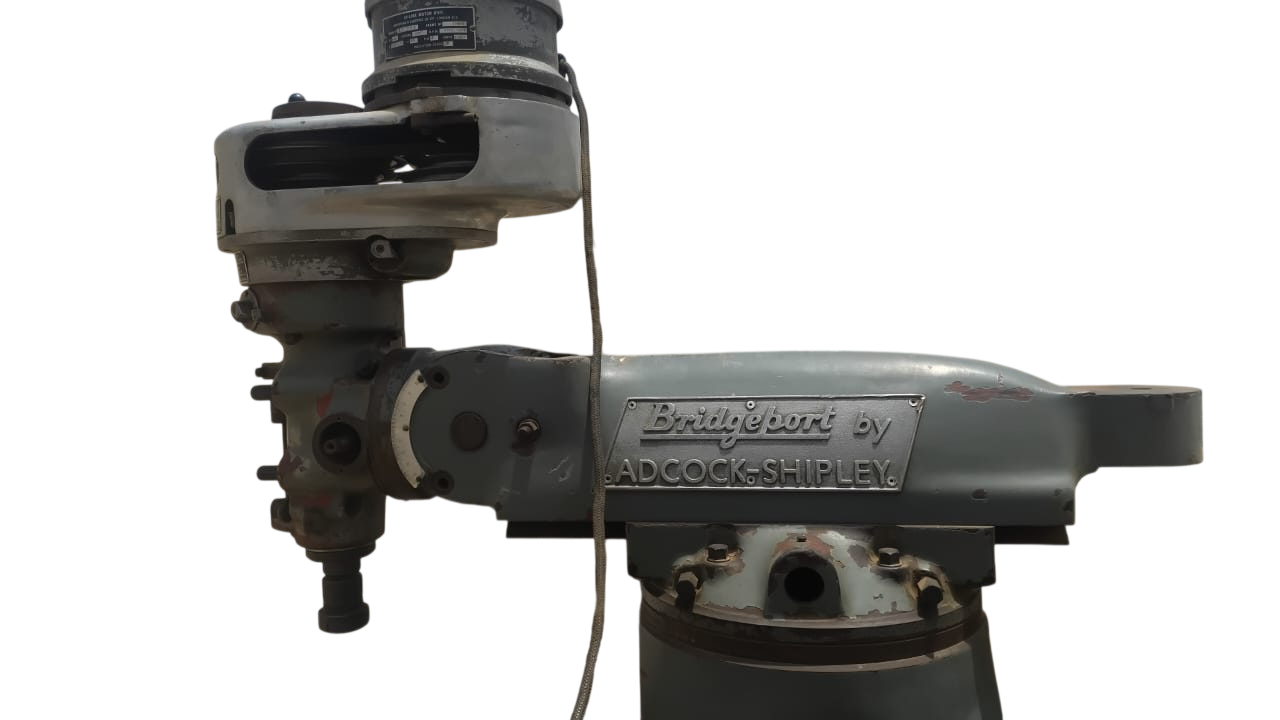

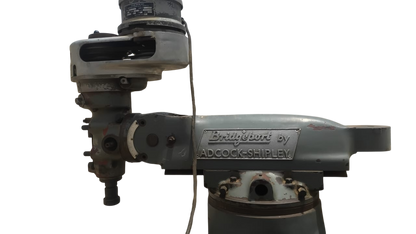

Turret Milling Head

• Genuine Bridgeport-Style Turret Head

• Head Tilts Left and Right

• 360° Swivel Head Rotation

• Adjustable Milling Angles

• Suitable for Vertical, Angular, and Precision Milling Operations

Spindle System

• Spindle Taper: R8 or ISO 30 (Depending on Model)

• Spindle Speed Range: Approx. 80 – 4200 RPM

• Multiple Speed Selection via Belt & Pulley System

• Forward and Reverse Rotation

• High Accuracy Spindle for Precision Machining

Feed & Control System

Manual Feed Controls

• Precision Handwheels

• Graduated Micrometer Dials

• Smooth Movement on All Axes

• Accurate Positioning Capability

Quill Feed System

• Manual Quill Feed

• Fine Feed Adjustment

• Accurate Depth Control

• Ideal for Drilling and Boring Operations

Electrical Specifications

• Main Motor Power: Approx. 1.5 – 3 HP

• Voltage: 220V / 380V

• Frequency: 50 Hz

• Phase: Single Phase or Three Phase (Depending on Configuration)

Machining Operations

Milling Operations

• Face Milling

• End Milling

• Slot Milling

• Keyway Cutting

• Angular Milling

• Surface Machining

Drilling Operations

• Drilling

• Reaming

• Boring

• Tapping

Tool Room Applications

• Mold Manufacturing

• Die Making

• Fixture Production

• Precision Component Machining

Materials Suitable for Machining

• Mild Steel

• Carbon Steel

• Stainless Steel

• Aluminum

• Brass

• Bronze

• Engineering Plastics

Machine Construction

• Heavy Cast Iron Frame

• Excellent Vibration Dampening

• Hardened and Ground Guideways

• High Rigidity Design

• Long Service Life

• Stable Performance During Continuous Operation

Possible Accessories

• Machine Vise

• Drill Chuck

• R8 Collet Set

• Milling Cutters

• Clamping Kit

• Coolant System (Optional)

Industrial Applications

• Machine Shops

• Tool Rooms

• Mold & Die Workshops

• Maintenance Departments

• Engineering Industries

• Manufacturing Facilities

• Technical Training Centers

Key Features

✔ Bridgeport-Style Precision Milling Machine
✔ High-Quality Italian Manufacturing
✔ 360° Swiveling Turret Head
✔ Heavy-Duty Cast Iron Construction
✔ Excellent Milling and Drilling Accuracy
✔ Suitable for Tool Room and Production Work
✔ Easy Maintenance and Operation
✔ Reliable Industrial Performance
✔ Long Service Life
✔ Ideal for Precision Engineering Applications
