Machine Classification & Identity

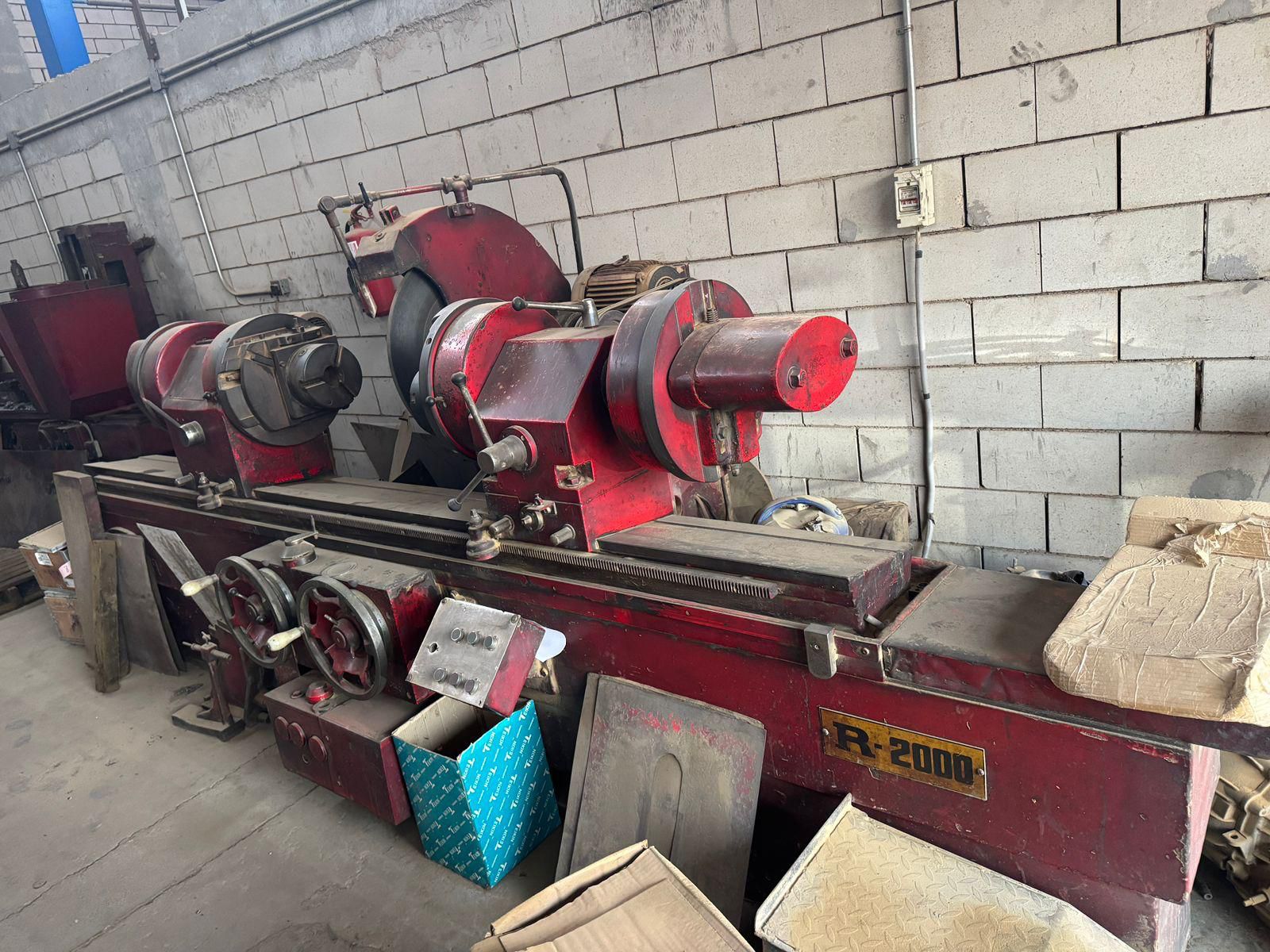

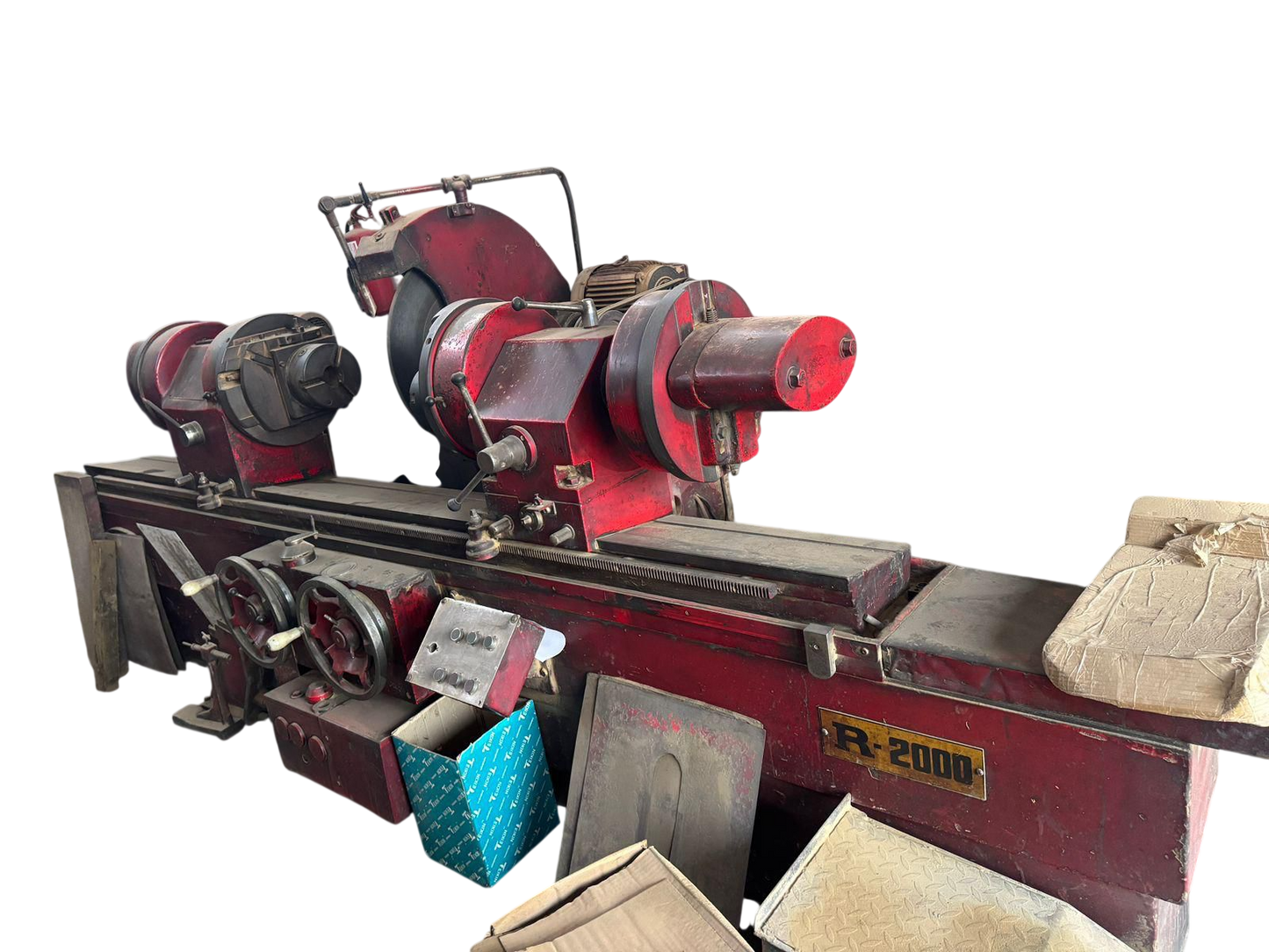

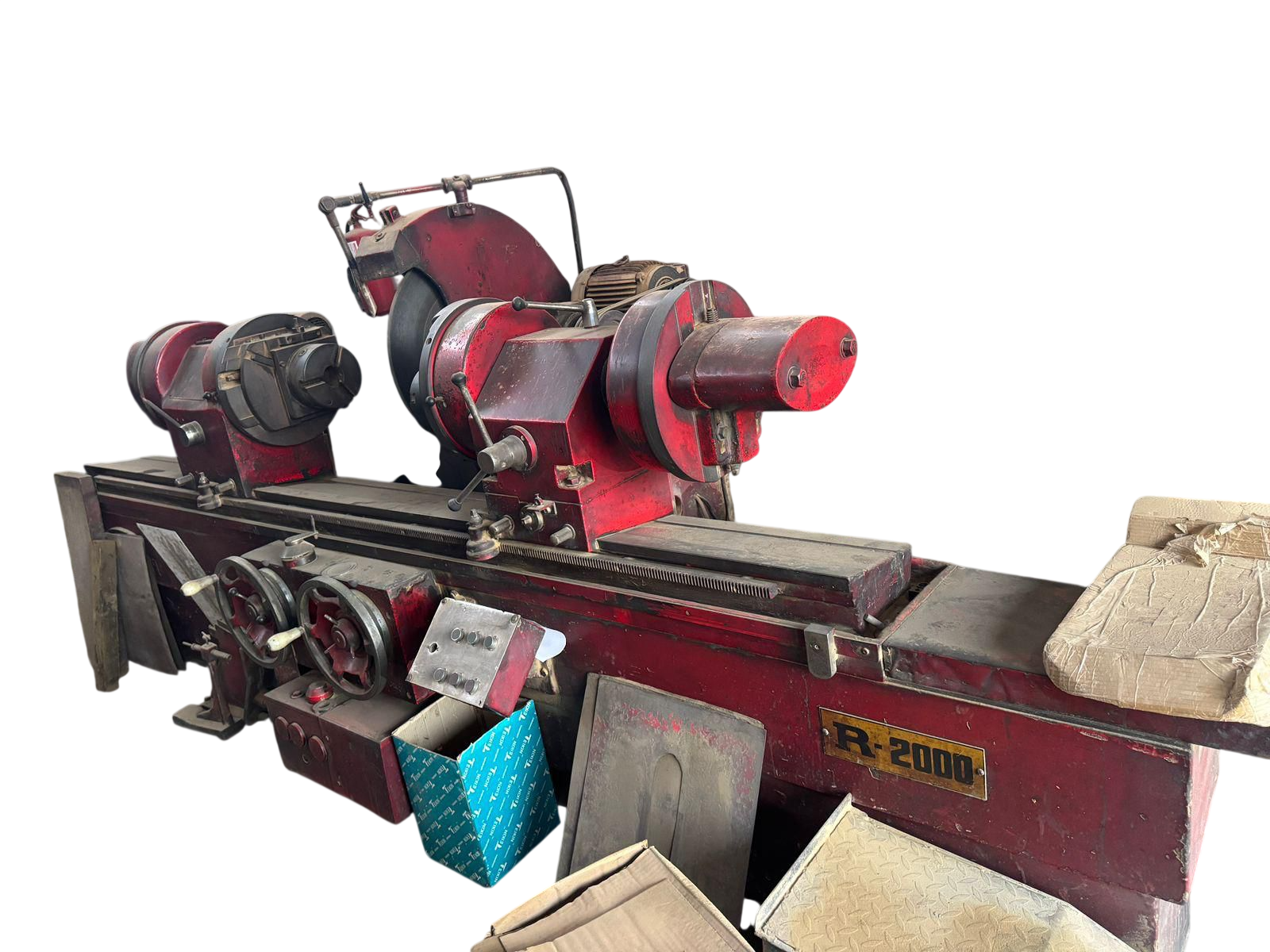

• Machine Type: Heavy-Duty Industrial Cylindrical Roll / Shaft Grinding Machine

• Model Designation: R-2000

• Primary Function: High-precision external grinding of large cylindrical workpieces, industrial rollers, and heavy shafts

Key Technical Components

• Machine Bed: Massive, rigid cast-iron horizontal lathe bed finished in industrial red protective coating

• Feed Drive: Integrated heavy-duty rack-and-pinion gear track running along the front for carriage travel

• Work Holding System: Dual-head rotating chuck assembly (left and right workheads) to clamp and spin heavy stock securely from both ends

• Grinding Head: Large-diameter abrasive grinding wheel positioned centrally behind the workpiece axis

• Drive Motor: Dedicated top-mounted induction motor supplying direct power to the grinding spindle

• Safety Housing: Heavy steel semi-circular safety shroud enclosing the abrasive wheel to contain sparks and debris

Mechanical Controls & Interface

• Traverse Control: Dual heavy-duty mechanical handwheels on the apron for fine-tuned manual adjustment of cross-feed depth and longitudinal movement

• Switch Station: Rugged local metal control box with heavy push-buttons mounted on the lower front carriage

• Registry Marking: High-visibility metallic model plaque (R-2000) riveted to the lower right side of the main bed
