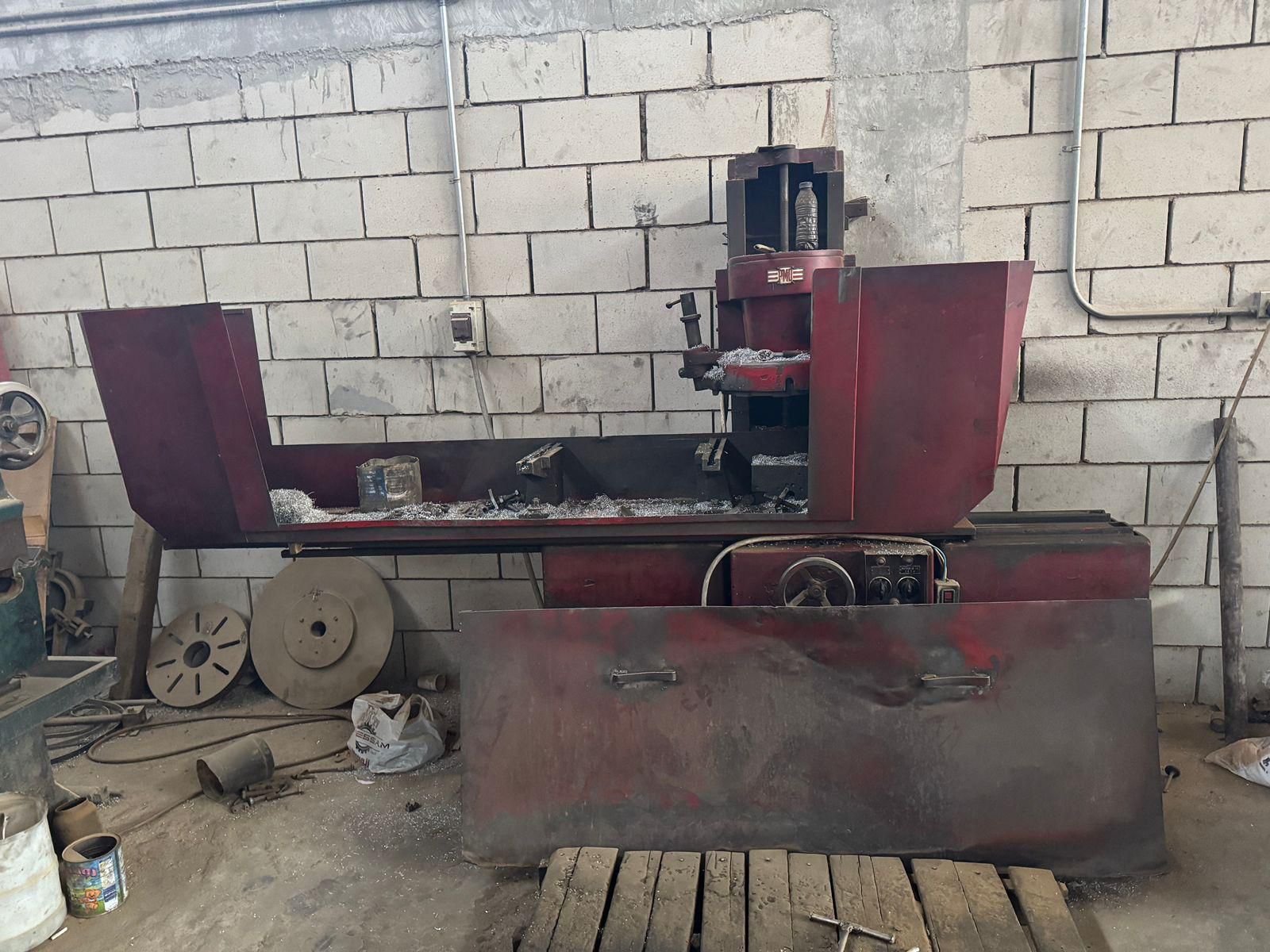

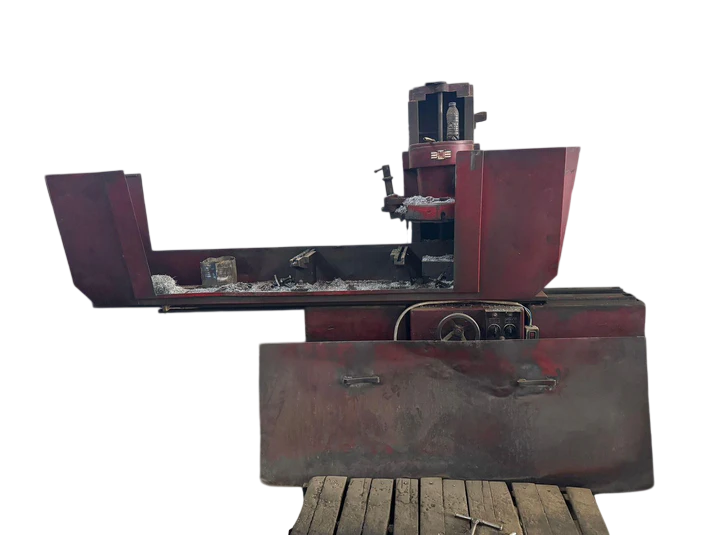

HEAD FACER MACHINE

HEAD FACER MACHINE

Country of Origin: Pakistan

General Information

• Machine Type: Cylinder Head Facer Machine
• Application: Resurfacing and Facing of Engine Cylinder Heads and Engine Blocks
• Suitable Materials: Cast Iron, Aluminum Alloy, and Steel

Technical Specifications

Working Capacity

• Maximum Head Length: 1200 mm
• Maximum Head Width: 400 mm
• Maximum Machining Height: 350 mm

Table

• Table Size: 1400 × 350 mm
• Longitudinal Travel: 1200 mm
• Cross Travel: 400 mm

Spindle

• Spindle Speed Range: 100 – 1,000 RPM
• Cutter Head Diameter: 300 mm
• Spindle Motor Power: 5 HP

Feed System

• Automatic Table Feed
• Variable Feed Rate Control

Power Requirements

• Power Supply: 380V, 50Hz, 3-Phase

Construction

• Heavy-Duty Cast Iron Body
• Precision Ground Guideways
• Anti-Vibration Design

Safety Features

• Emergency Stop Button
• Safety Guards
• Overload Protection

Machine Dimensions

• Length: 2200 mm
• Width: 1200 mm
• Height: 1700 mm
• Approximate Weight: 1800 kg

Standard Features

• Precision Surface Finishing
• Automatic Feed System
• Heavy-Duty Construction
• Easy Operation and Maintenance
• Suitable for Automotive Engine Rebuilding Workshops

Included Accessories

• Cutter Head Assembly
• Tool Kit
• Machine Manual
• Clamping Set
