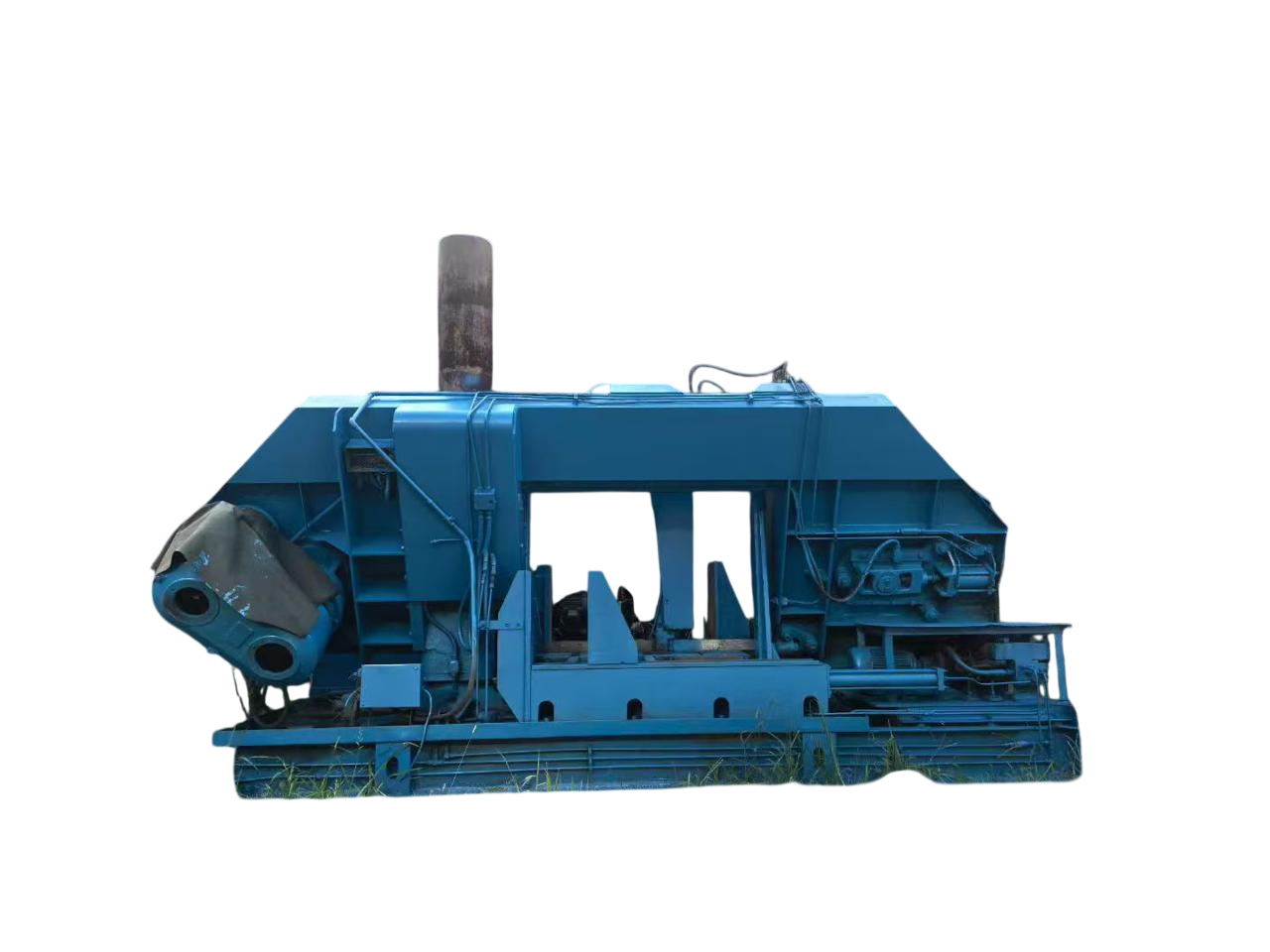

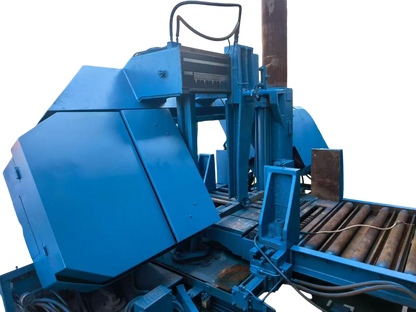

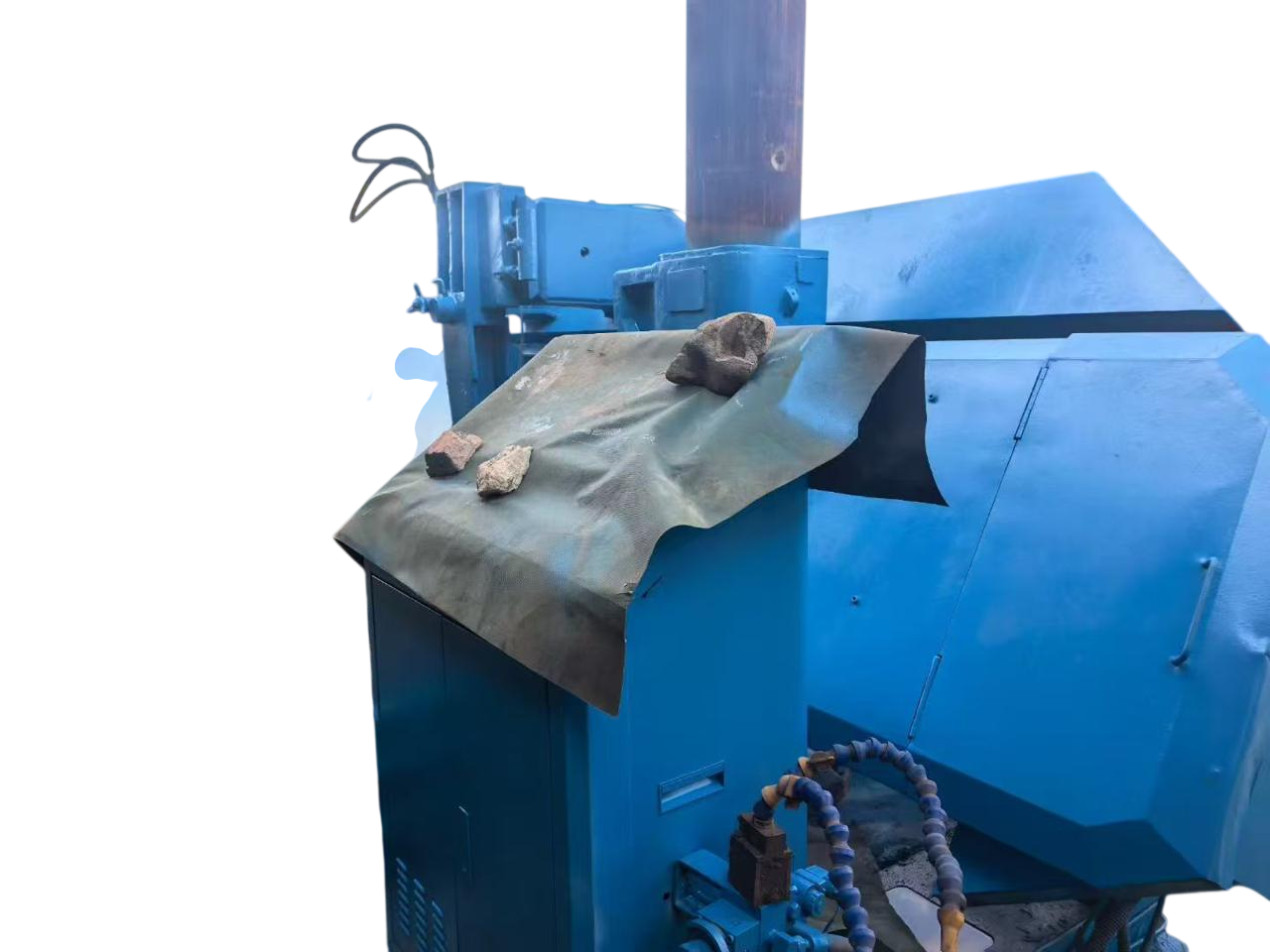

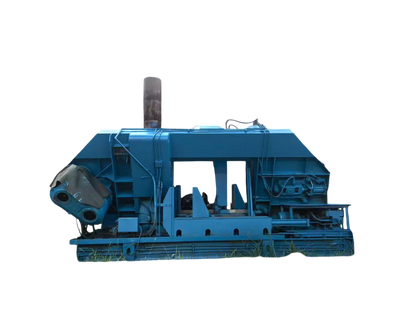

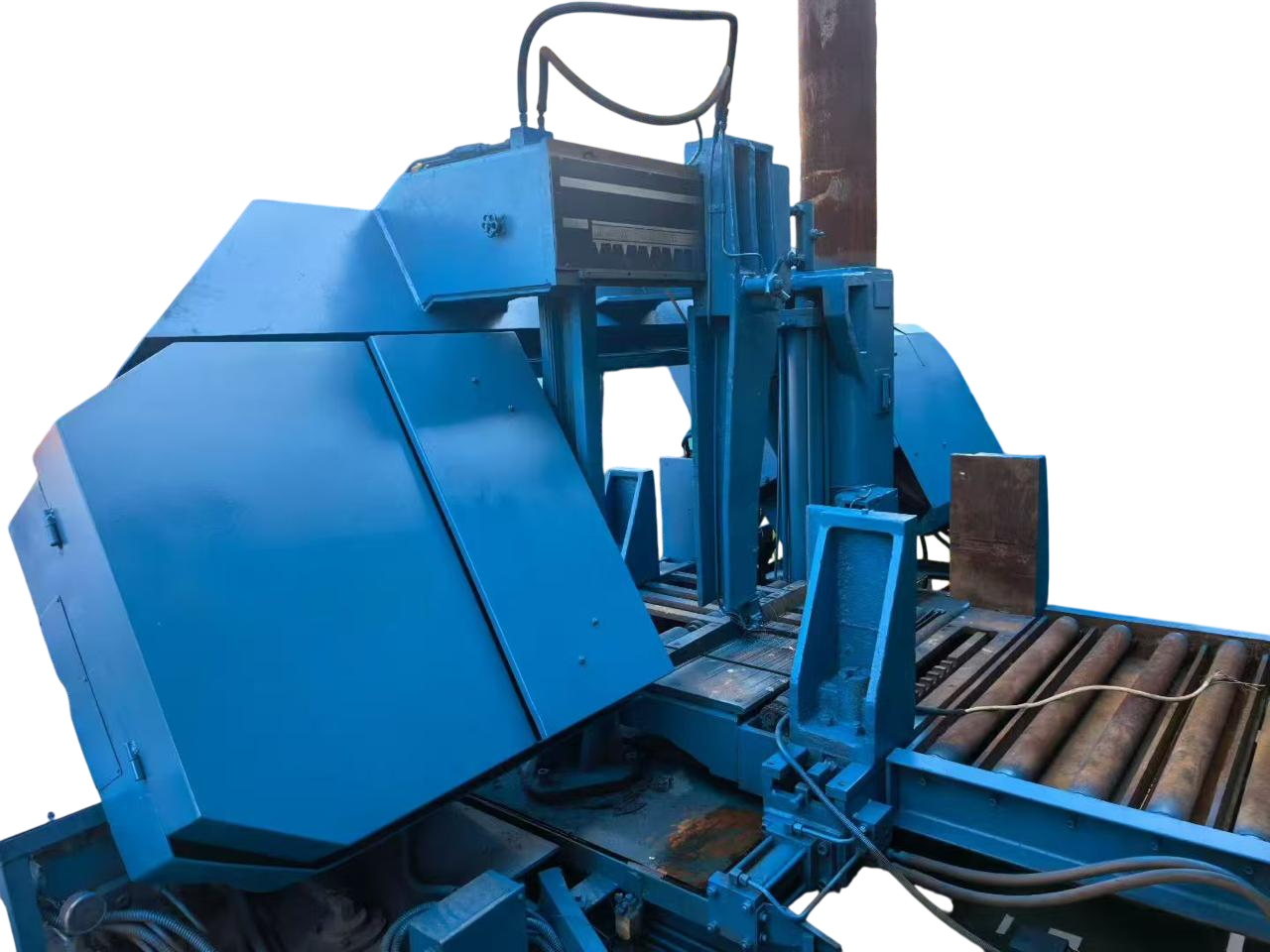

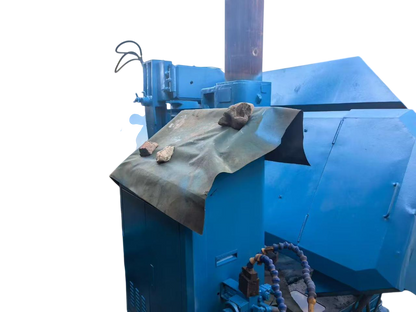

Heavy Duty Horizontal Band Saw Machine Made in Japan (1200mm Flat Bed Capacity)

Heavy Duty Horizontal Band Saw Machine – Ø1200 mm Flate Bed Capacity

General Information

• Machine Type: Hydraulic Horizontal Band Saw

• Cutting Capacity (Round): Ø1200 mm

• Cutting Capacity (Square): 1200 × 1200 mm

• Application: Steel Bars, Forged Shafts, Pipes, Billets, Alloy Steel, Stainless Steel

• Condition: Used Industrial Machine

• Construction: Heavy-Duty Fabricated Steel Frame

• Feed System: Hydraulic Down Feed

Saw Blade Specifications

• Blade Type: Bi-Metal Band Saw Blade

• Blade Length: Approx. 8800 – 9800 mm

• Blade Width: 54 – 67 mm

• Blade Thickness: 1.6 mm

• Blade Tensioning: Hydraulic

• Blade Guide System: Carbide Guide Blocks

• Blade Speed Range: 15 – 80 m/min (Variable)

Hydraulic System

• Hydraulic Feed Control

• Adjustable Cutting Pressure

• Automatic Blade Lift

• Hydraulic Material Clamping Vice

• Hydraulic Blade Tension System

Work Table & Material Handling

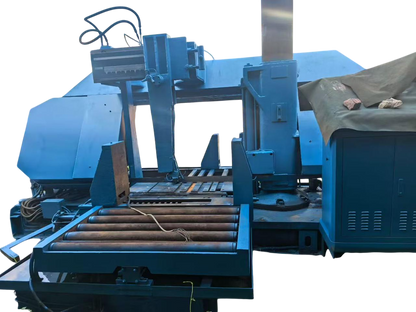

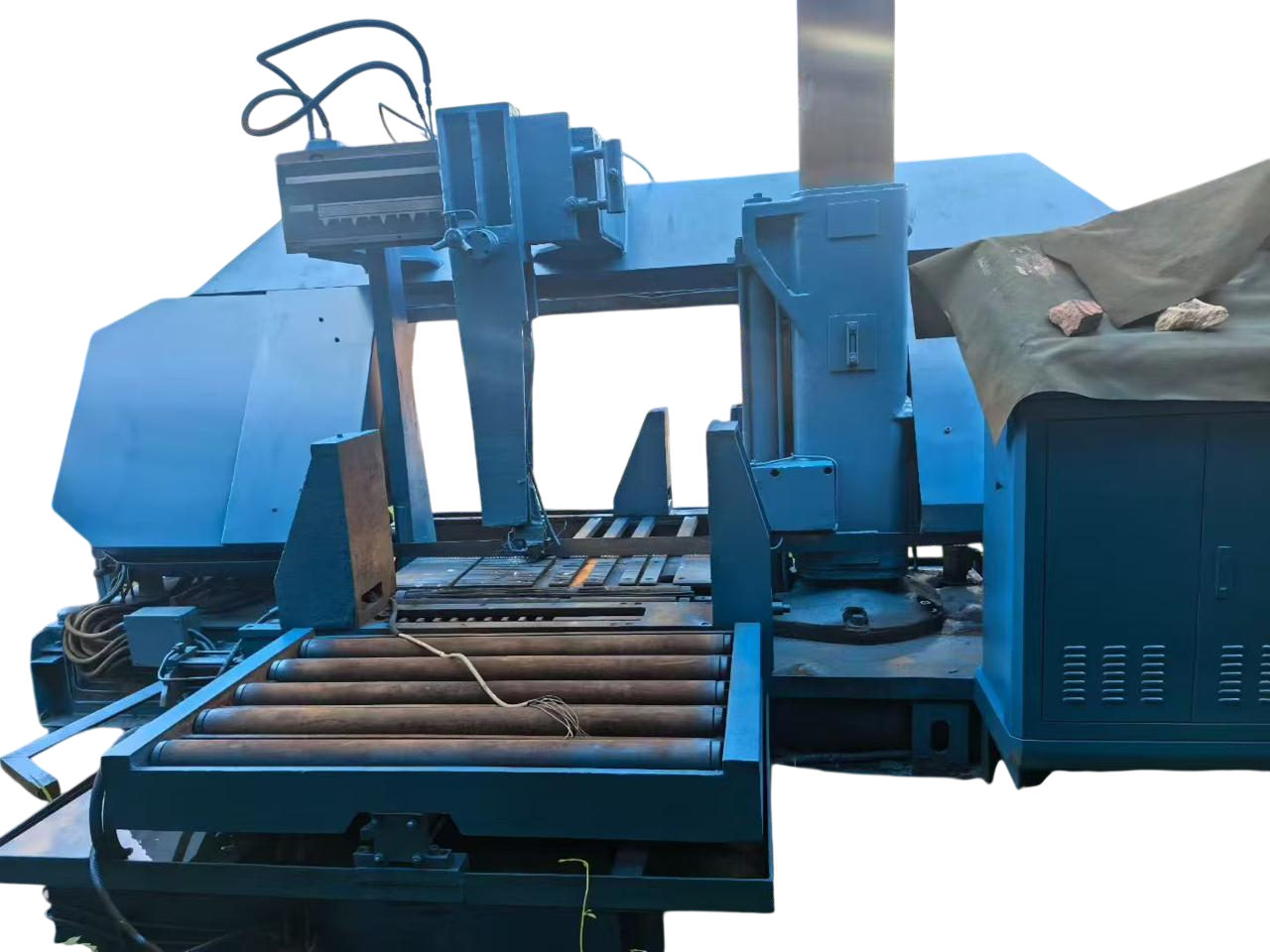

• Integrated Roller Conveyor Table

• Heavy-Duty Loading Rollers

• Large Workpiece Support Frame

• Adjustable Material Stop

• Suitable for Long Round Bars & Shafts

Drive System

• Main Motor: 11 – 15 kW

• Hydraulic Pump Motor: 2.2 – 3.0 kW

• Coolant Pump Motor: 0.12 – 0.25 kW

• Drive Type: Gearbox Driven

Electrical Specifications

• Power Supply: 380V / 415V

• Frequency: 50 Hz

• Phase: 3 Phase

• Control Voltage: 24V DC / 110V AC

• Industrial Electrical Cabinet

Accuracy

• Cutting Tolerance: ±0.2 – 0.5 mm

• Straight Cut Performance

• Low Vibration Design

Safety Features

• Blade Guard Protection

• Emergency Stop Switch

• Hydraulic Overload Protection

• Coolant Flow Monitoring

• Safety Interlock System

Machine Dimensions (Approx.)

• Length: 4500 – 5500 mm

• Width: 2200 – 2800 mm

• Height: 2800 – 3500 mm

• Machine Weight: 8 – 15 Tons

Suitable Materials

• Carbon Steel

• Alloy Steel

• Stainless Steel

• Tool Steel

• Forged Shafts

• Heavy Industrial Billets

• Thick-Wall Pipes

Selling Description

Heavy Duty Hydraulic Band Saw Machine – 1000 mm Capacity

• Large Ø1000 mm round cutting capacity

• Hydraulic automatic feeding system

• Heavy-duty roller conveyor table

• Gear-driven blade transmission

• Suitable for cutting large shafts, billets, pipes, and steel bars

• Industrial workshop and fabrication use

• Robust steel construction

• 3-Phase power supply

• Smooth and accurate cutting performance

• Used machine in working condition
