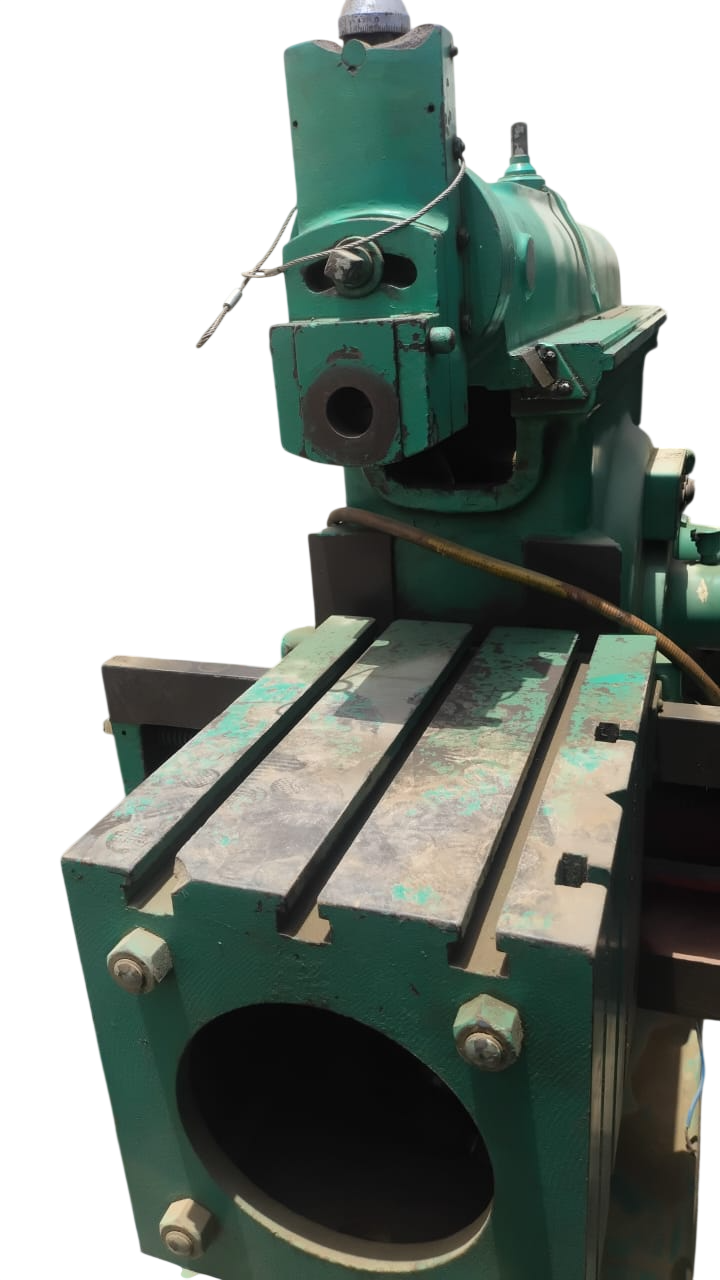

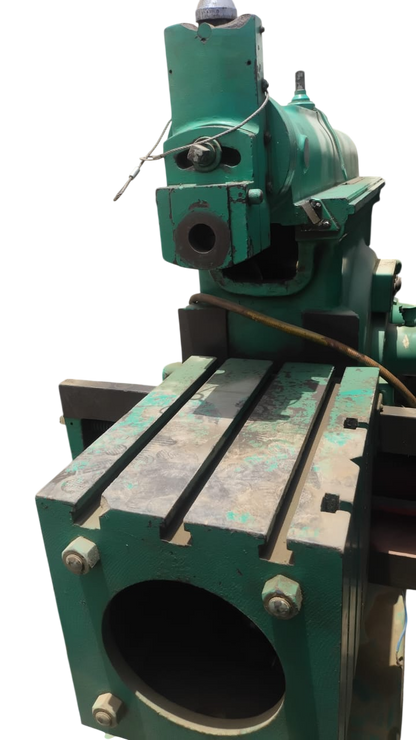

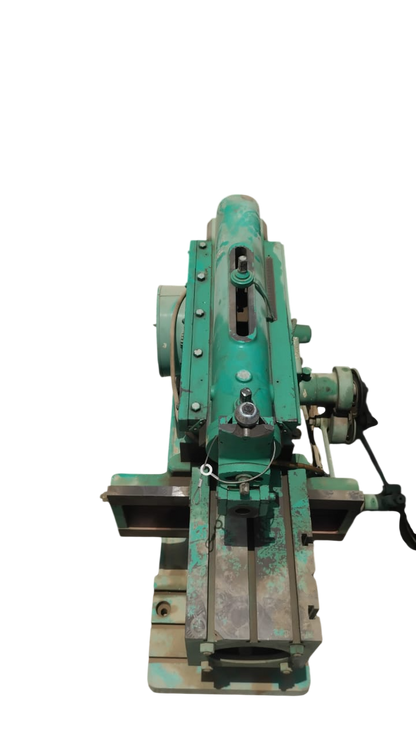

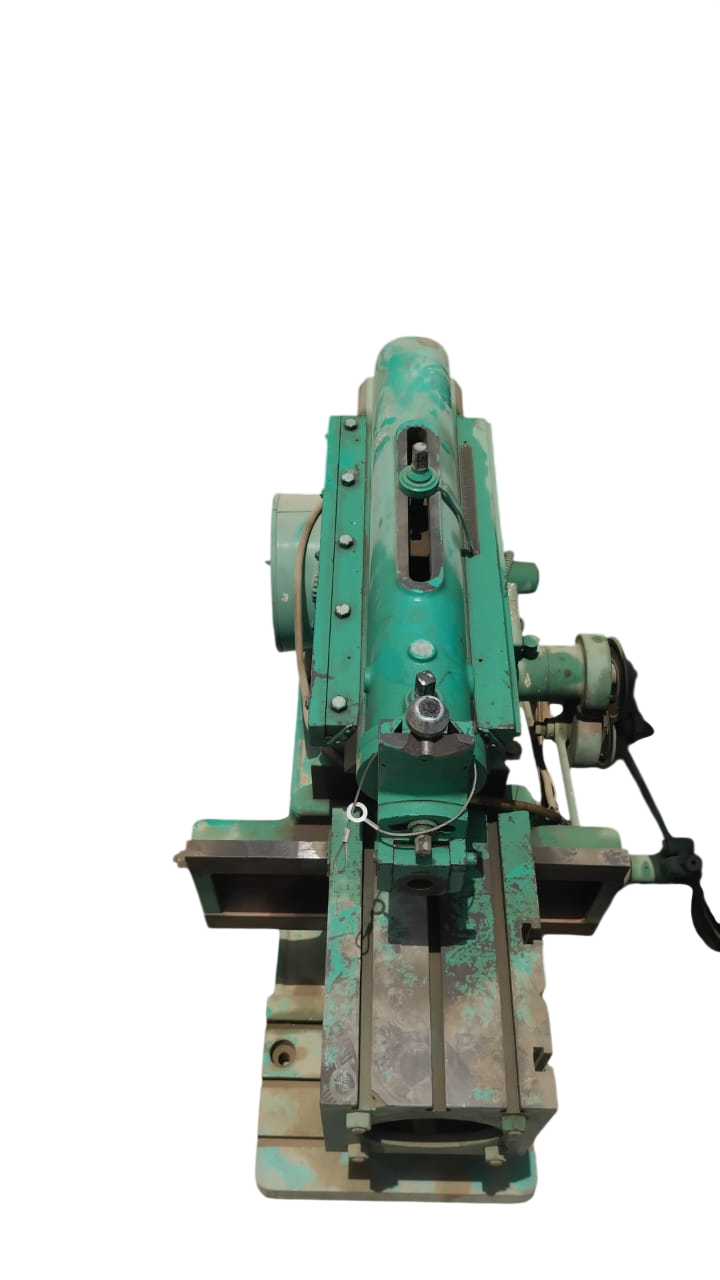

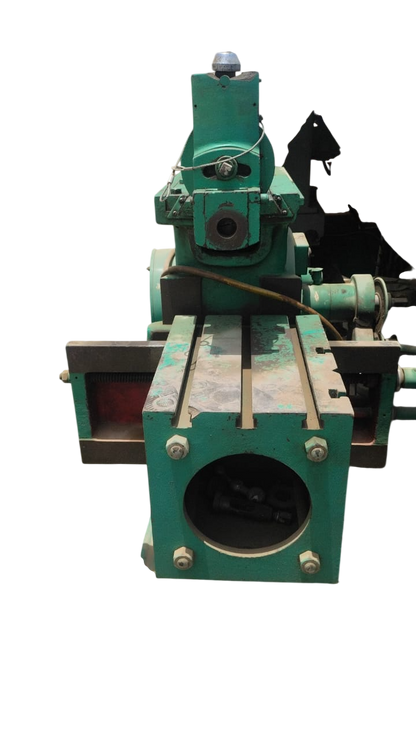

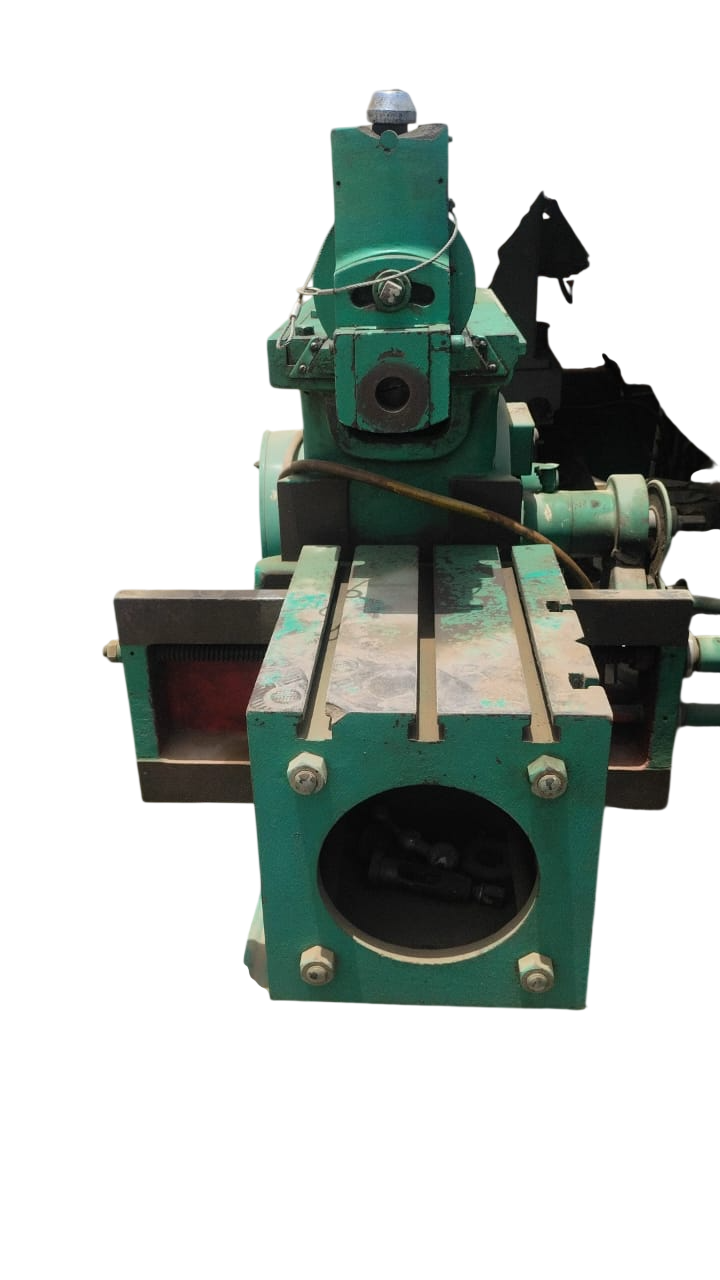

Heavy-Duty Metal Shaper Machine Big

Heavy-Duty Metal Shaper Machine

Detailed Description & Specifications

Machine Type

• Type: Metal Shaper Machine

• Operation: Mechanical Reciprocating Ram

• Duty: Heavy Industrial Workshop Machine

• Condition: Used

• Construction: Cast Iron Heavy-Duty Frame

Main Components

• Reciprocating Ram

• Tool Head Assembly

• Clapper Box

• Cross Rail

• Work Table

• Column Body

• Feed Mechanism

• Drive Pulley System

• Manual Stroke Adjustment System

Estimated Specifications

• Stroke Length: Approx. 450–600 mm

• Table Size: Approx. 350 × 350 mm

• Vertical Table Travel: 250–350 mm

• Cross Travel: 250–300 mm

• Tool Head Swivel: ±60°

• Feed Type: Automatic Mechanical Feed

• Stroke Speed Range: Multiple Speed Settings

• Cutting Direction: Horizontal Reciprocating Motion

Machine Features

• Heavy Cast Iron Construction

• High Rigidity for Accurate Cutting

• Adjustable Ram Stroke

• Automatic Feed Mechanism

• Swiveling Tool Head for Angular Cuts

• Suitable for Flat, Vertical and Inclined Surfaces

• Low Maintenance Mechanical Design

• Reliable Workshop Production Machine

Applications

• Machining Flat Surfaces

• Cutting Keyways

• Cutting Slots & Grooves

• Dovetail Machining

• Die & Mold Repair Work

• General Engineering Workshops

• Maintenance Departments

• Tool Room Applications

Suitable Materials

• Mild Steel

• Carbon Steel

• Cast Iron

• Stainless Steel

• Brass

• Bronze

• Aluminum

Power Requirements (Estimated)

• Motor Power: 2–5 HP

• Voltage: 380–415V

• Frequency: 50 Hz

• Phase: 3 Phase AC

Sales Description

Heavy Duty Metal Shaper Machine

• Robust cast iron construction

• Adjustable ram stroke mechanism

• Automatic feed system

• Swiveling tool head for angular machining

• Suitable for flat surfaces, slots, grooves, and keyway cutting

• Ideal for engineering workshops, fabrication shops, maintenance departments, and industrial applications

• Smooth operation with reliable machining performance

• 3 Phase industrial power supply

Origin: Industrial Workshop Machine
Condition: Used – Good Working Condition
Application: Metal Shaping, Slotting, Keyway & Surface Machinin
