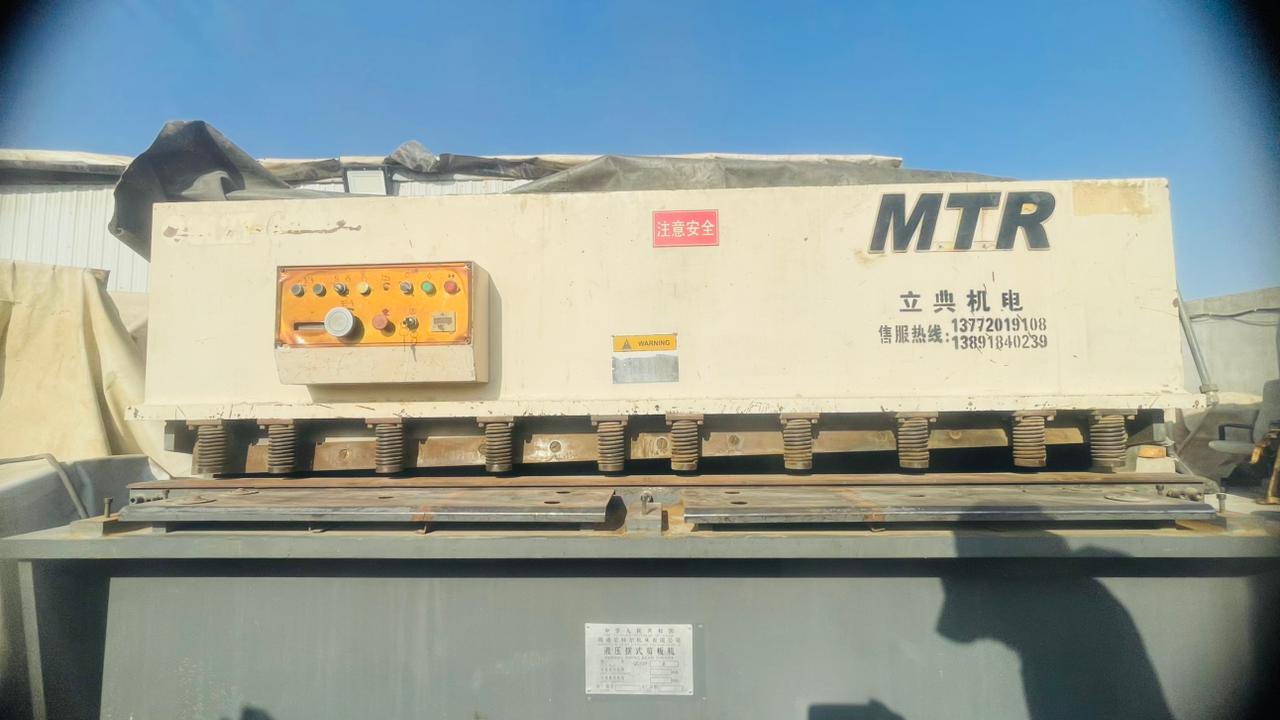

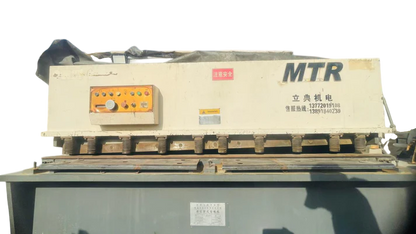

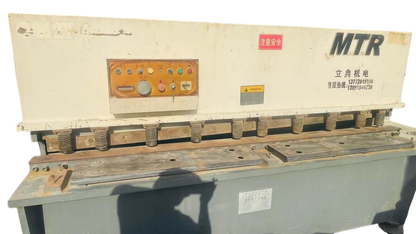

Hydraulic iron sheet cutting machine Size thickness 6mm length 2500mm

Hydraulic iron sheet cutting machine
 Size thickness 6mm length 2500mm

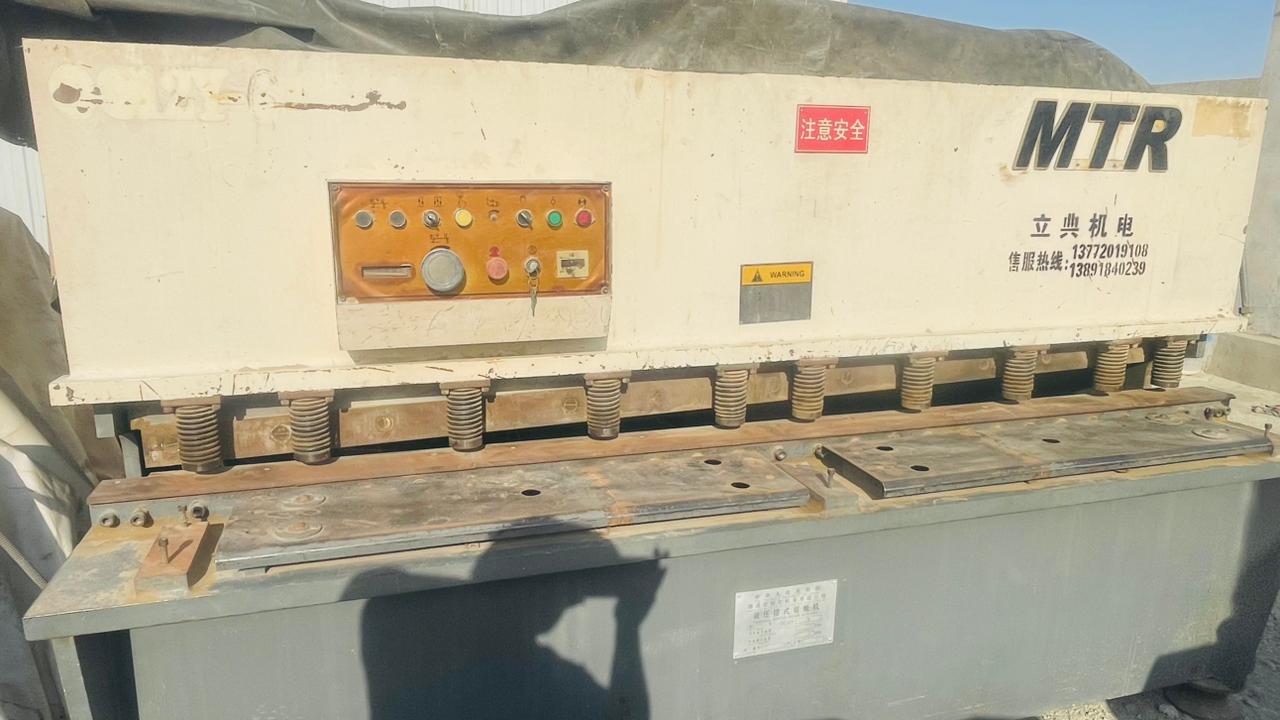

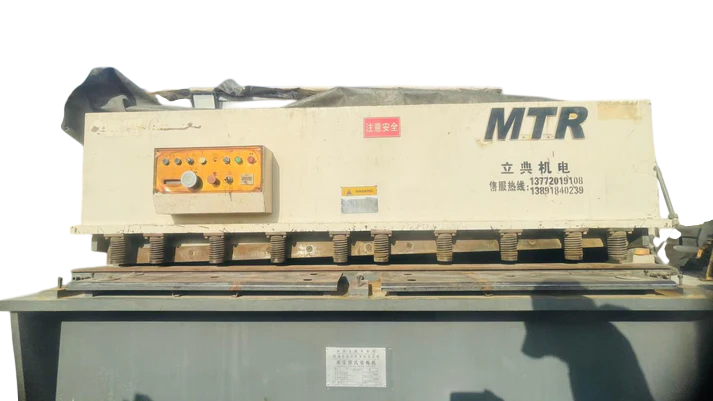

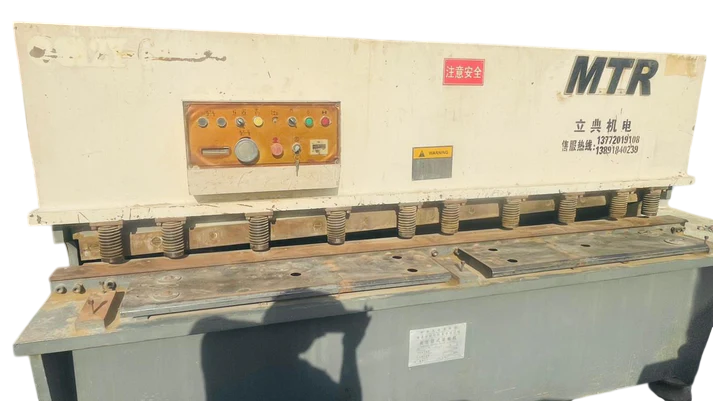

The 6mm thickness and 2500mm length capacity represents the exact core capability of the QC12Y-6×2500 Hydraulic Swing Beam Shearing Machine shown in your second nameplate photo.

Here is a targeted technical guide on how this specific machine handles 6mm × 2500mm iron/mild steel sheet cutting, along with essential operational rules for this capacity:

1. Material Capacity Breakdown

While the machine is rated for a maximum of 6mm, that thickness limit depends entirely on the tensile strength of the metal you are cutting:

• Mild Steel / Iron Sheets: Full 6mm maximum capacity.

• Stainless Steel: Maximum 3mm (Stainless steel is much harder; trying to cut 6mm stainless will overload the hydraulics and damage the blades).

• Aluminum / Soft Alloys: Up to 8mm can typically be cut safely.

2. Crucial Step: Adjusting Blade Clearance (Gap Setting)

To get a clean, straight cut on a 6mm sheet without producing massive burrs or jamming the machine, you must manually adjust the Blade Clearance Handwheel on the side of the frame

3. Best Practices for Cutting Full-Length (2500mm) Sheets

• Verify the Hold-Down Plungers: Because you are shearing across a full 2500mm (8.2 feet), the sheet will want to twist or kick upward. Ensure all 13 hydraulic hold-down plungers drop down firmly onto the sheet before the blade starts moving down.

• Never Exceed the Rake Angle: The fixed rake angle ($1^ 30'$) is optimized to reduce twisting on a 6mm plate. Let the machine cycle at its natural stroke rate (approx. 14–18 cuts per minute)—never try to force or rush the material through.

• Keep Blades Flipped: If you notice the 6mm iron sheets are leaving rough, rolled edges, do not rush to grind the blades. Remember that both the top and bottom blades have 4 sharp cutting edges. You can unbolt them, rotate them to a fresh face, and bolt them back down.
