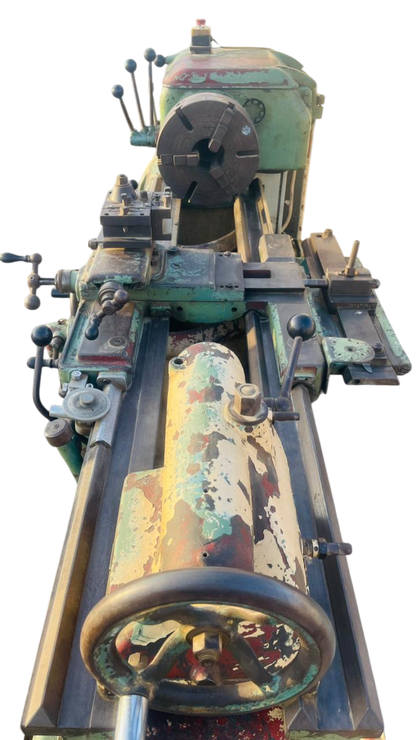

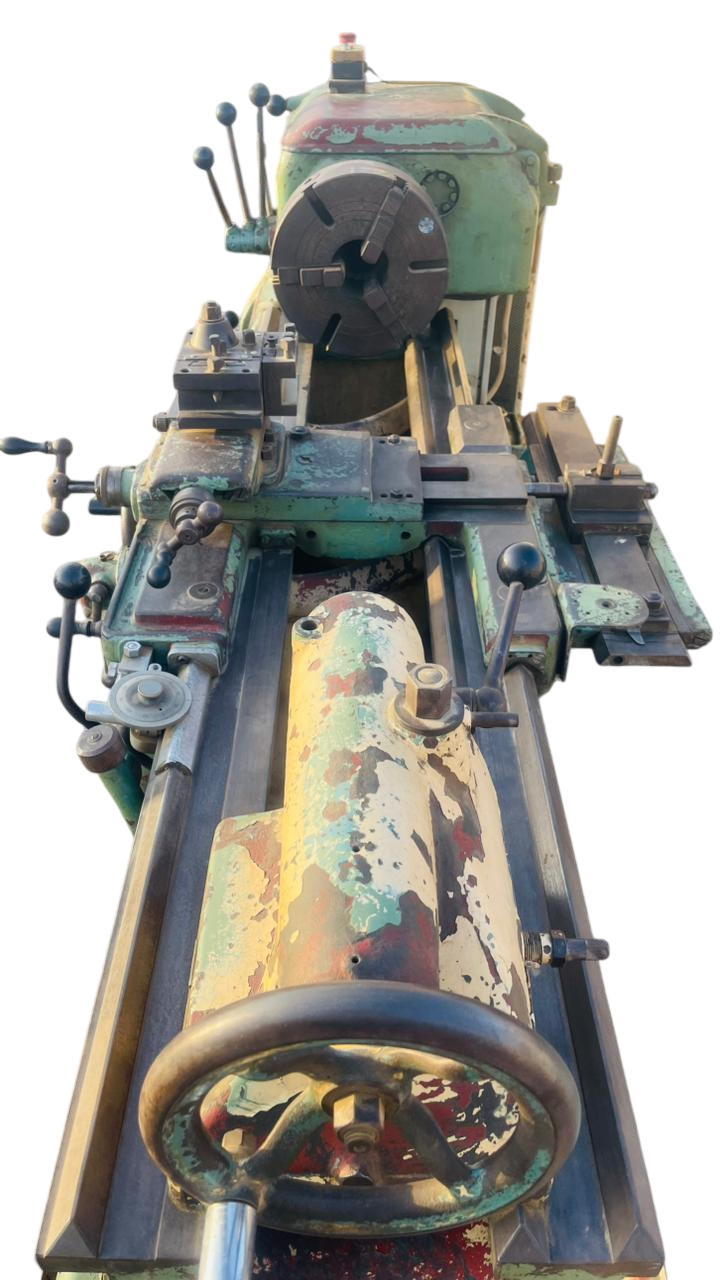

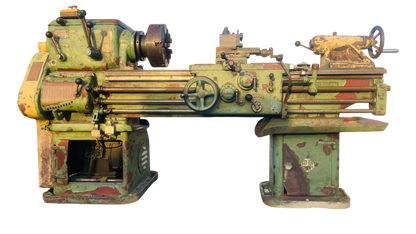

Lathe Machine 1 meter - Sweden

Name: Lathe Machine 1 meter - Sweden
Brand: mliksa.com
Price: 12000.00 SAR
Availability: InStock

12,000.00 SR

~~15,000.00 SR~~ 12,000.00 SR

Sale Sold out

Taxes included. Shipping calculated at checkout.

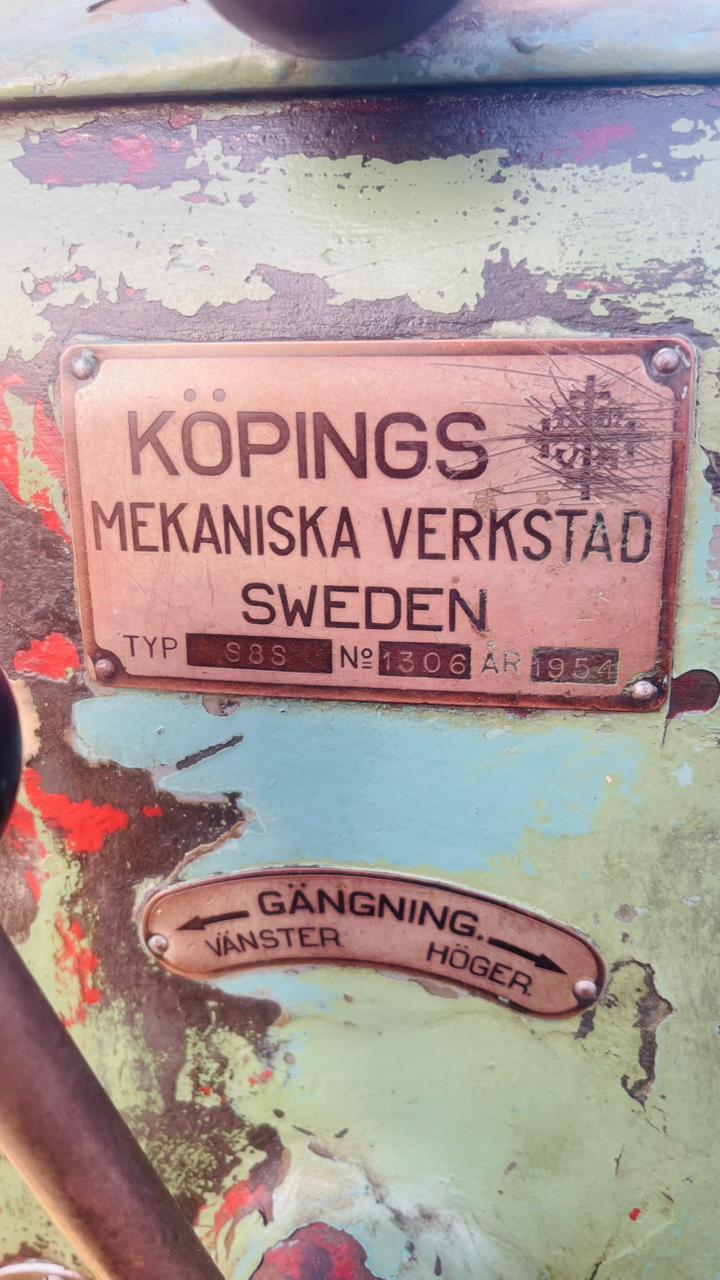

Brand Identity: A small, weathered manufacturer's plate is visible on the upper left headstock, characteristic of older Köping Mekaniska Verkstad (Sweden) machinery.
Gear Control Levers: The top features multiple heavy mechanical shift levers used to select spindle speed ranges (RPM) by engaging internal headstock gears.
Thread & Feed Chart: A curved bronze informational chart is fixed to the lower front of the headstock to guide the operator on lever positions for different thread pitches (metric/imperial) and feed rates.
Spindle & Chuck: Equipped with a rugged manual 3-jaw or 4-jaw chuck mounted on the spindle nose to grip raw cylindrical stock.

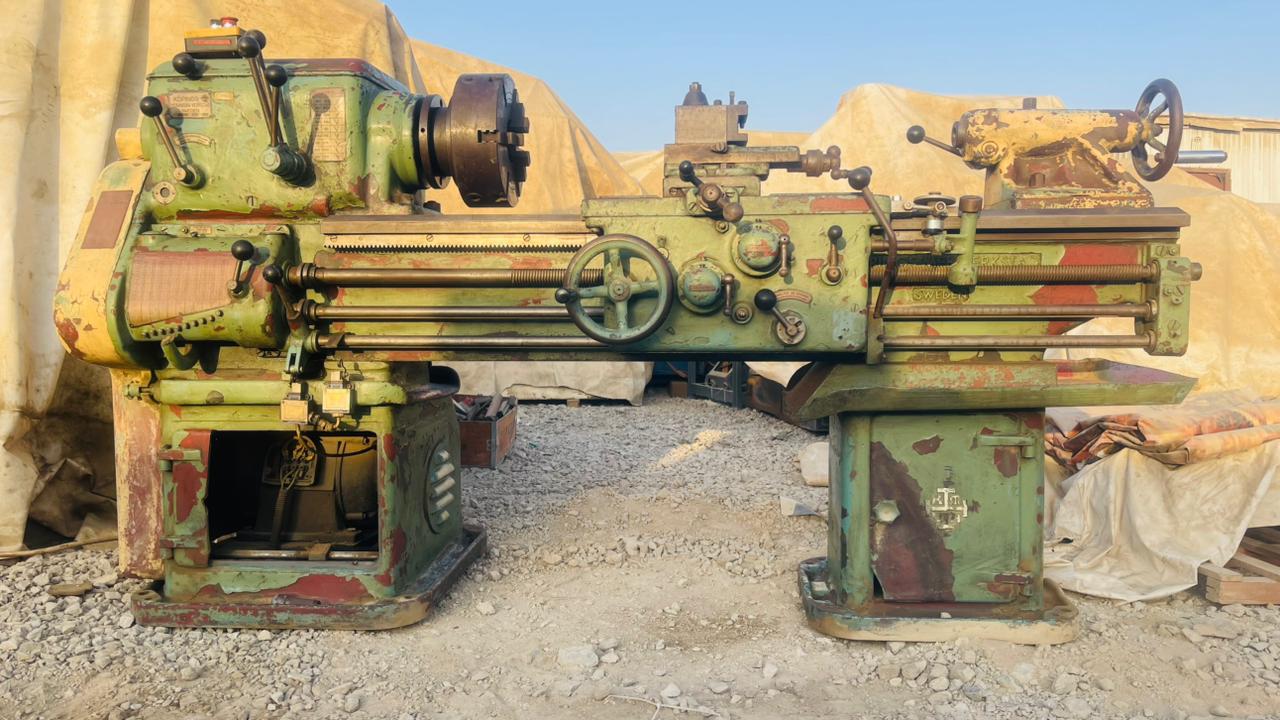

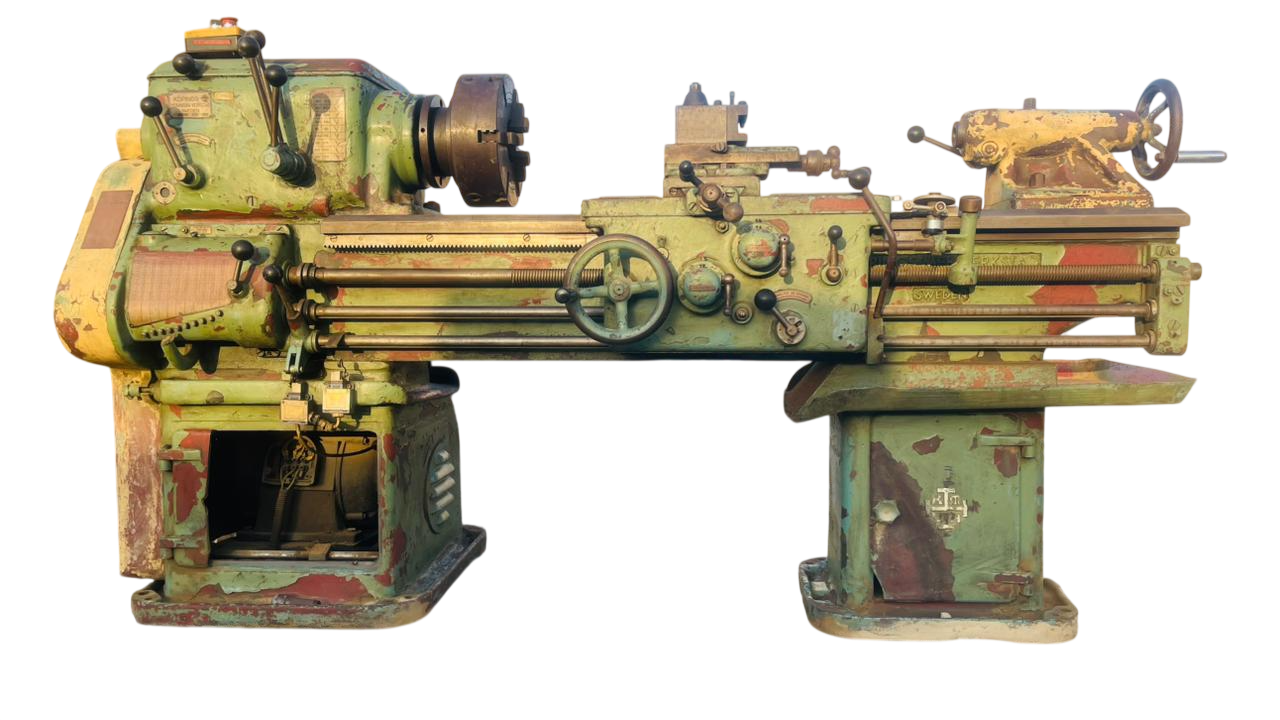

V-Ways Bed: The machine is built on a massive cast-iron horizontal bed with precision-ground V-ways that guide the carriage perfectly straight.
The Apron & Carriage: The central moving assembly features a large main handwheel for manual longitudinal travel, along with secondary engagement levers for automated cross-feed and power threading.
Leadscrew & Feed Rods: Three heavy horizontal steel rods run parallel along the front of the bed to transfer mechanical driving power from the gearbox to the apron.

Tailstock Assembly: Located on the far right, featuring a manual top handwheel to extend the internal quill. This is used to hold a live center to support long workpieces or to mount drill chucks for centerline boring.
Pedestal Legs: The entire lathe rests on two massive cast-iron pedestal bases anchored to the floor. The right pedestal includes an integrated storage compartment door.

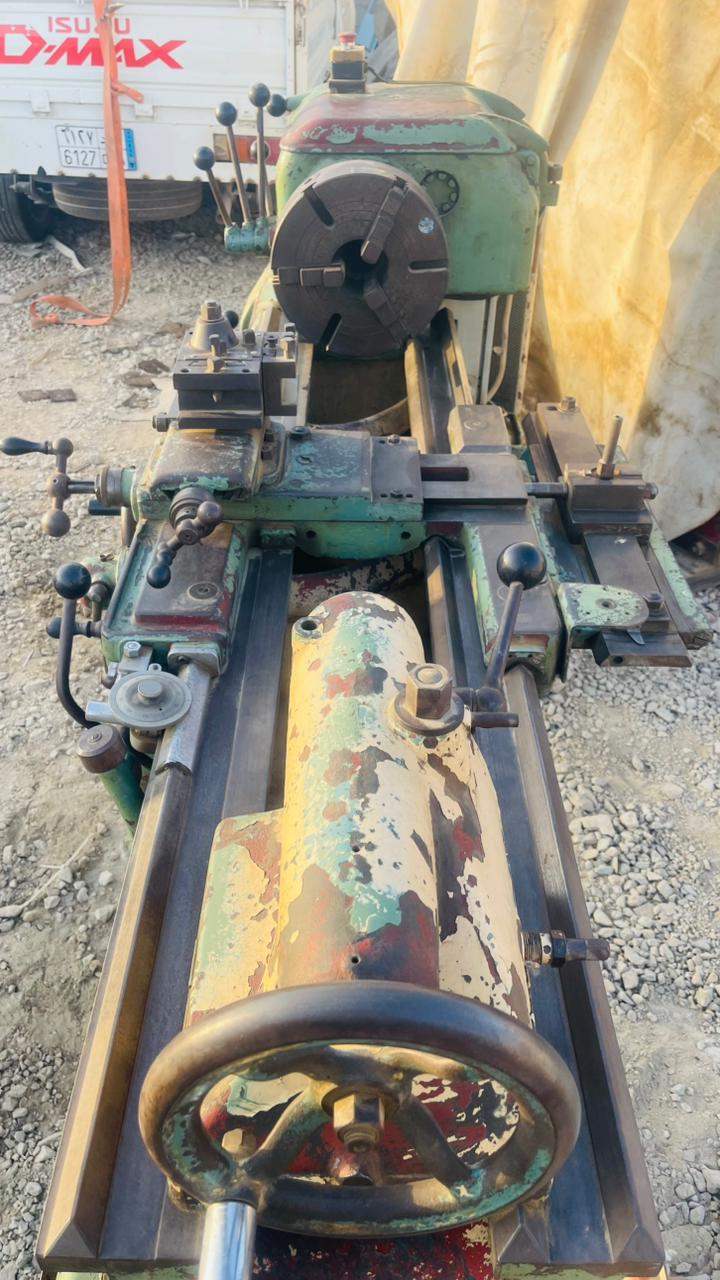

Setting: Kept in an open-air machinery yard or salvage area on a gravel floor, positioned alongside other covered equipment.
Condition: Highly weathered with significant paint peeling, surface rust, and grease buildup, indicating a classic piece of machinery that has seen a long industrial working life but remains structurally complete.
