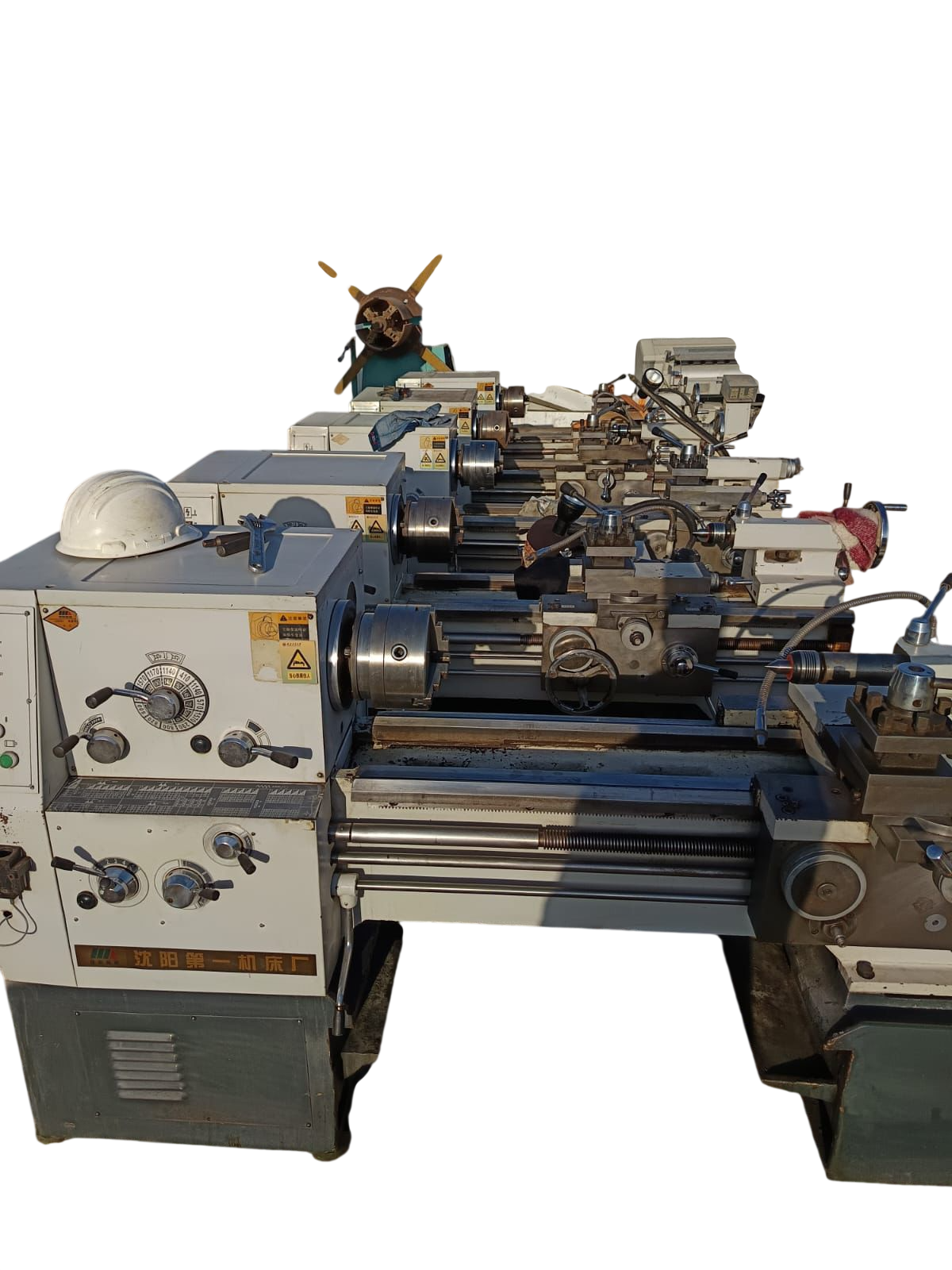

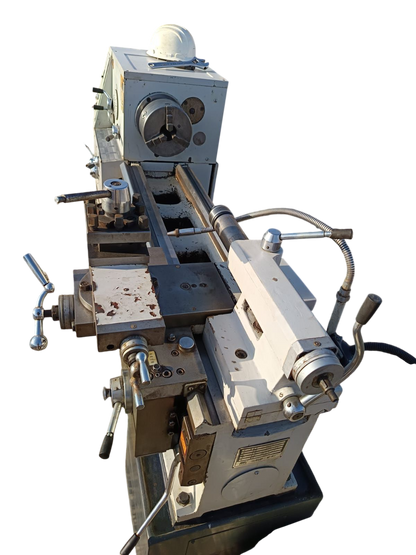

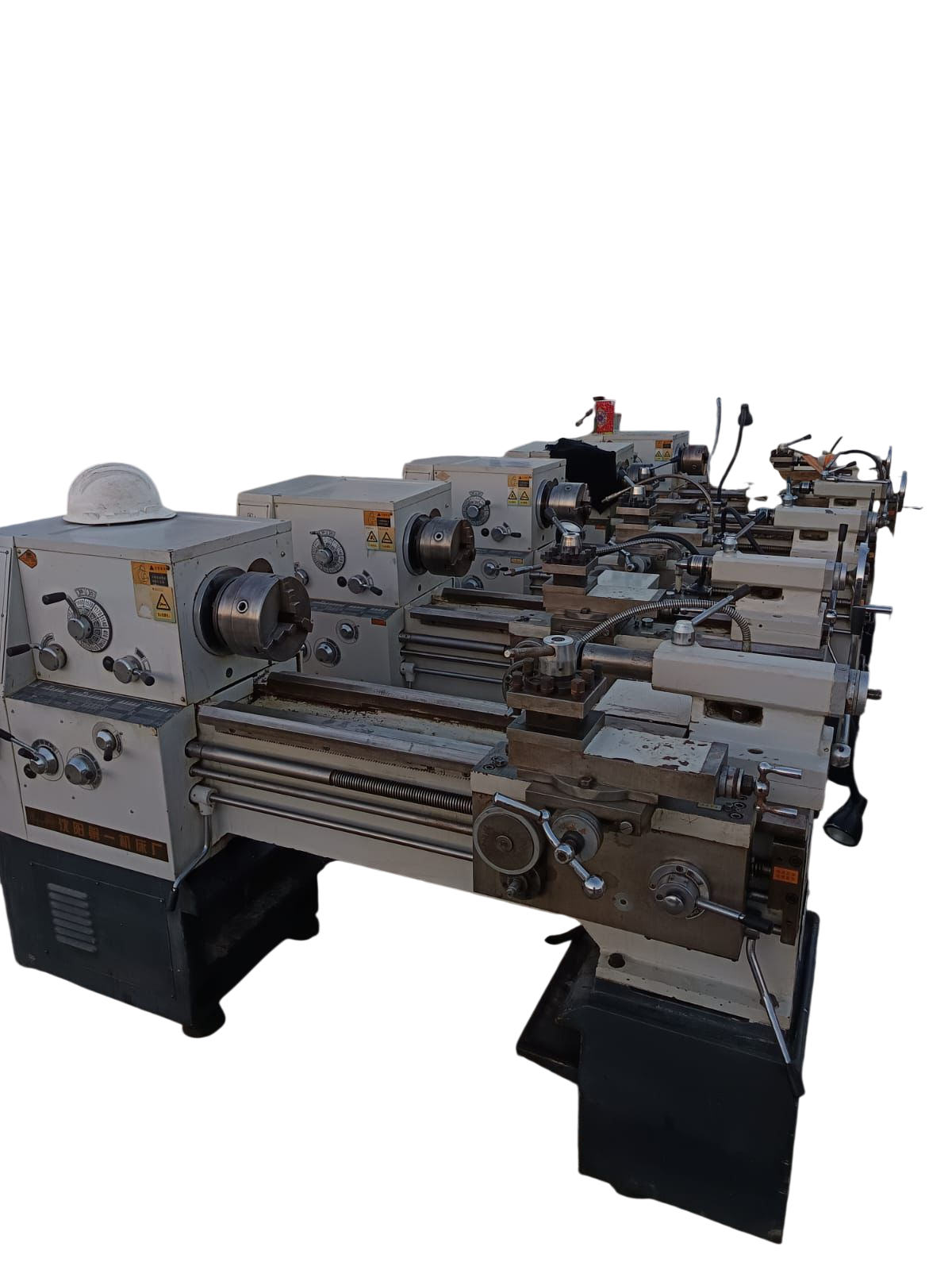

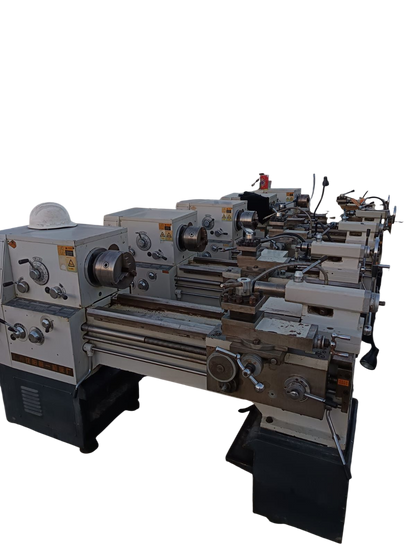

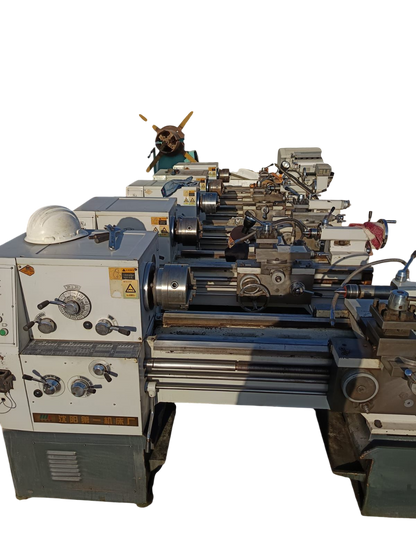

LATHE MACHINE 25CM CHINA

LATHE MACHINE 25CM CHINA

Machine & Manufacturer Identity

• Country of Origin: People's Republic of China

• Manufacturer: Shenyang First Machine Tool Works

• Machine Model: CA6136 (Engine Lathe)

Main Power Specifications

• Power Supply Voltage: 380V

• Current Type: AC (Alternating Current)

• Frequency: 50 Hz

• Number of Phases: 3-Phase

• Total Machine Current: 25 A

Control & Auxiliary Systems

• Control Circuit Voltage: AC 110V / DC 24V

• Local Work Light Voltage: 24

Safety & Protection

• Ingress Protection Rating: IP54 (Dust protected & splash-proof)

• Main Fuse Breaking Current: 16 A

Cabinet Registry

• Electrical Box Serial Number: 4352

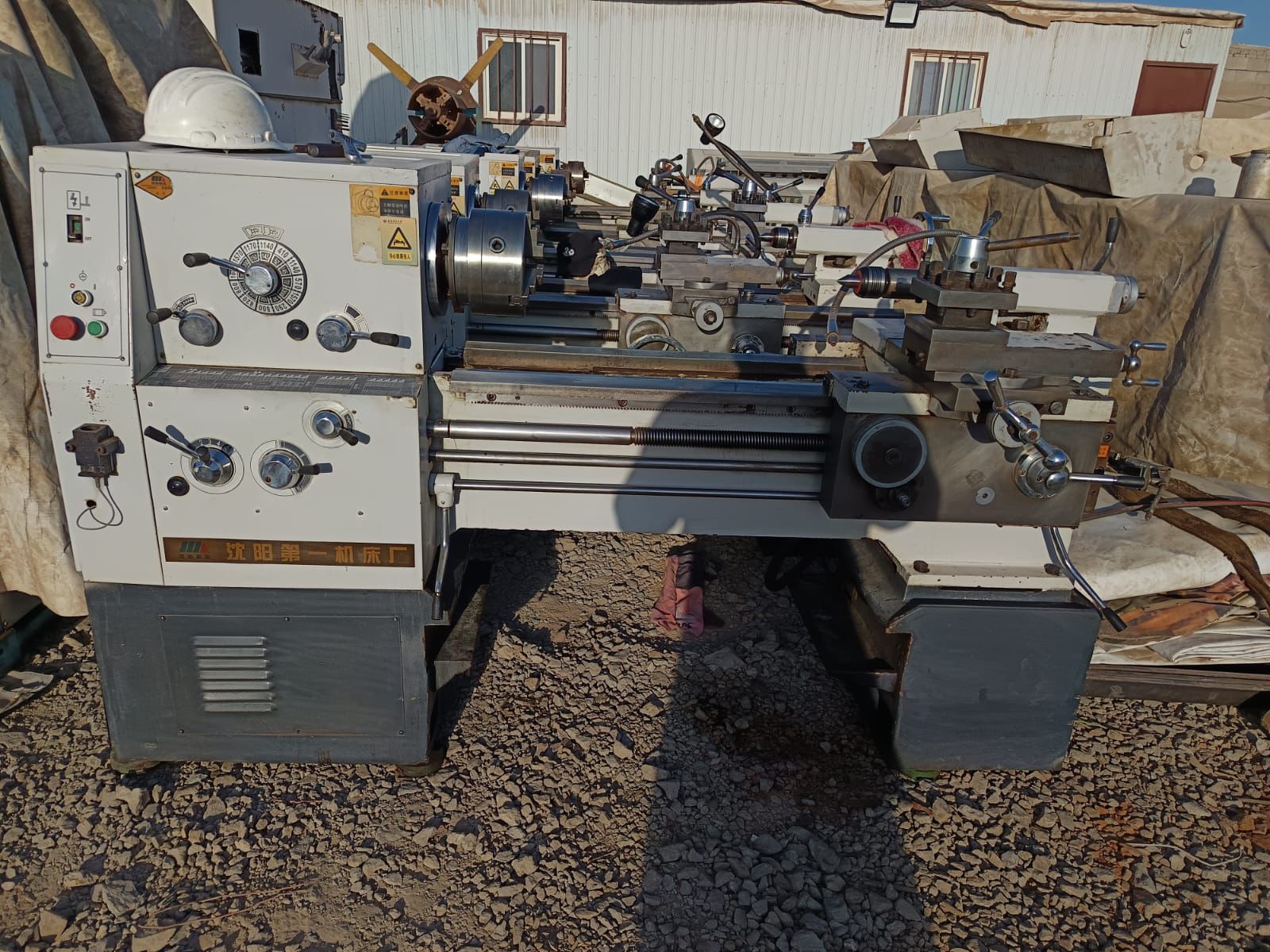

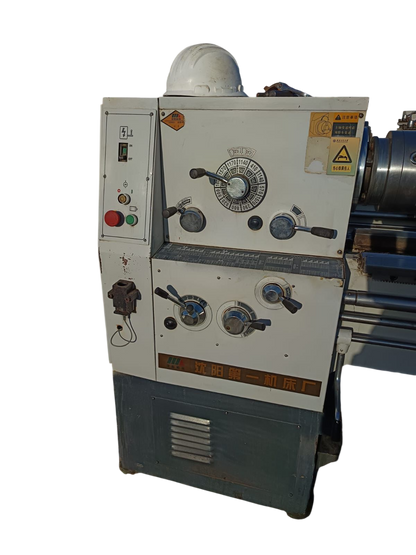

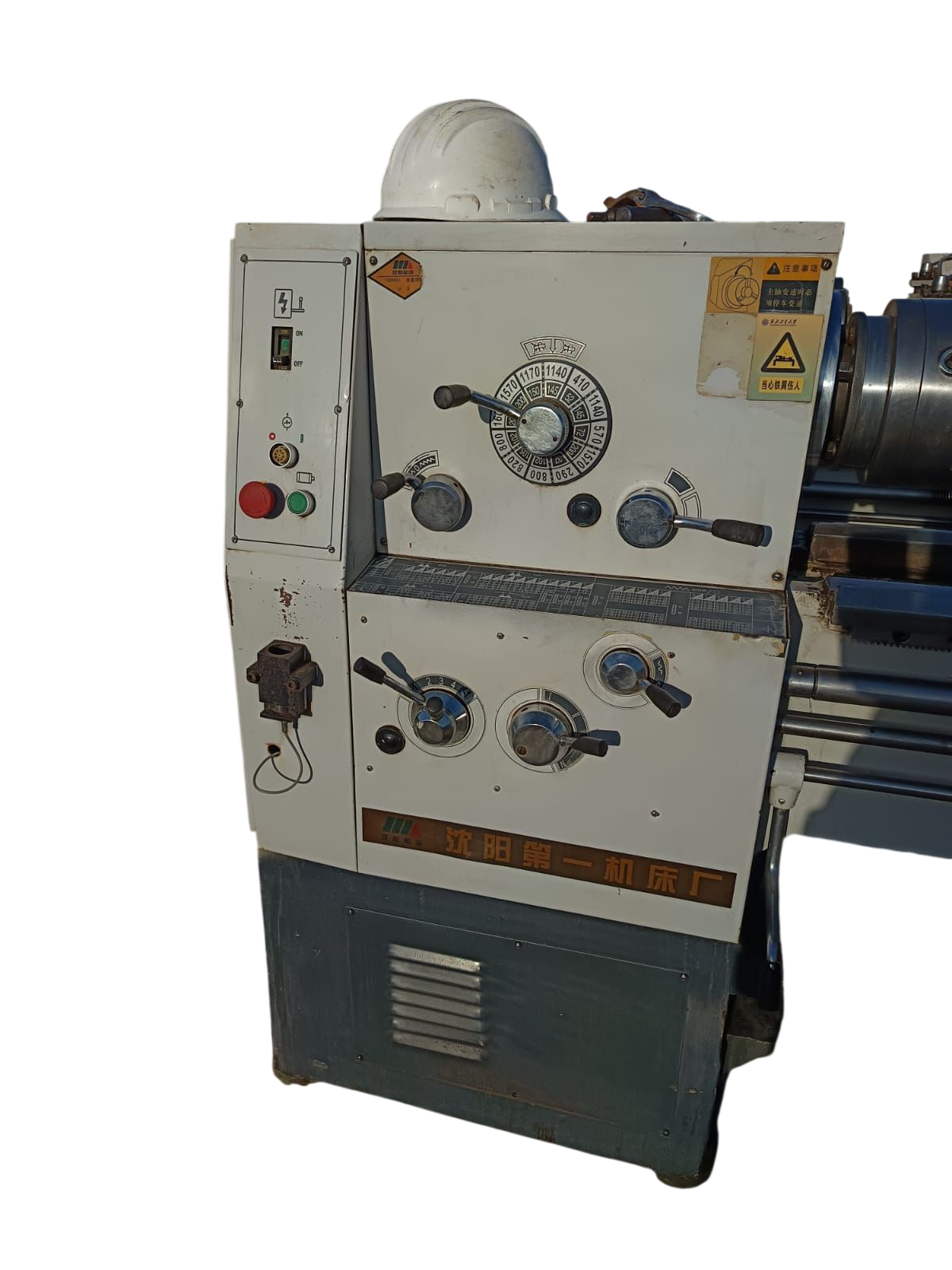

• Headstock & Controls (Left Side)

  • Manufacturer Branding: The bronze plaque on the lower part of the headstock reads (Shenyang First Machine Tool Works).

  • Speed Selection Dial: The large circular chart with text Spindle Speed) and levers allows the operator to select different mechanical gear speeds for the spindle, ranging from low torque to high RPMs.

  • Feed Change Levers: The smaller handles below the speed dial adjust the thread pitch and feed rate configurations for automated cutting.

  • Electrical Panel: Located on the far left edge, featuring a main power toggle switch, a green start button, and a prominent red emergency stop button.

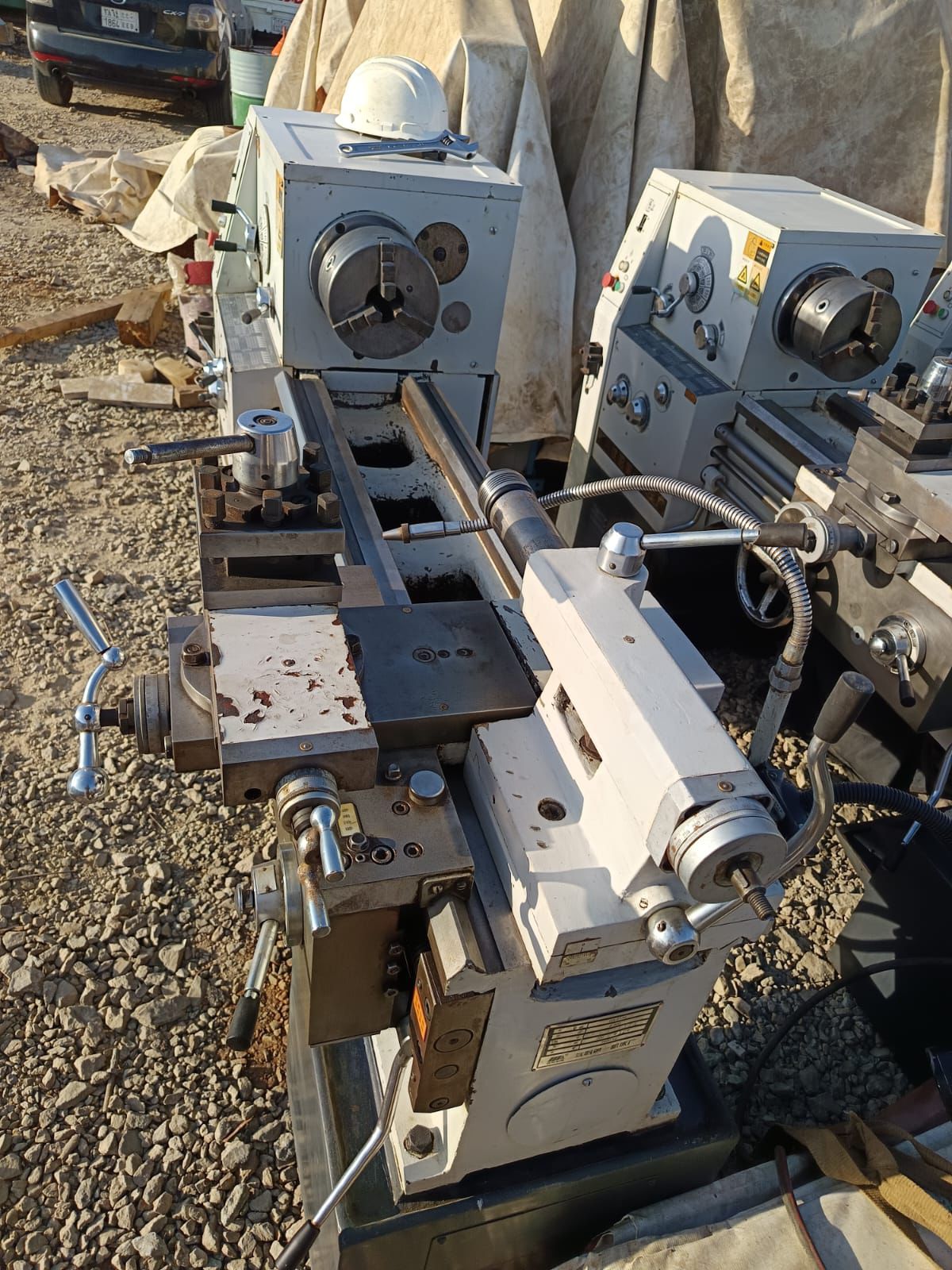

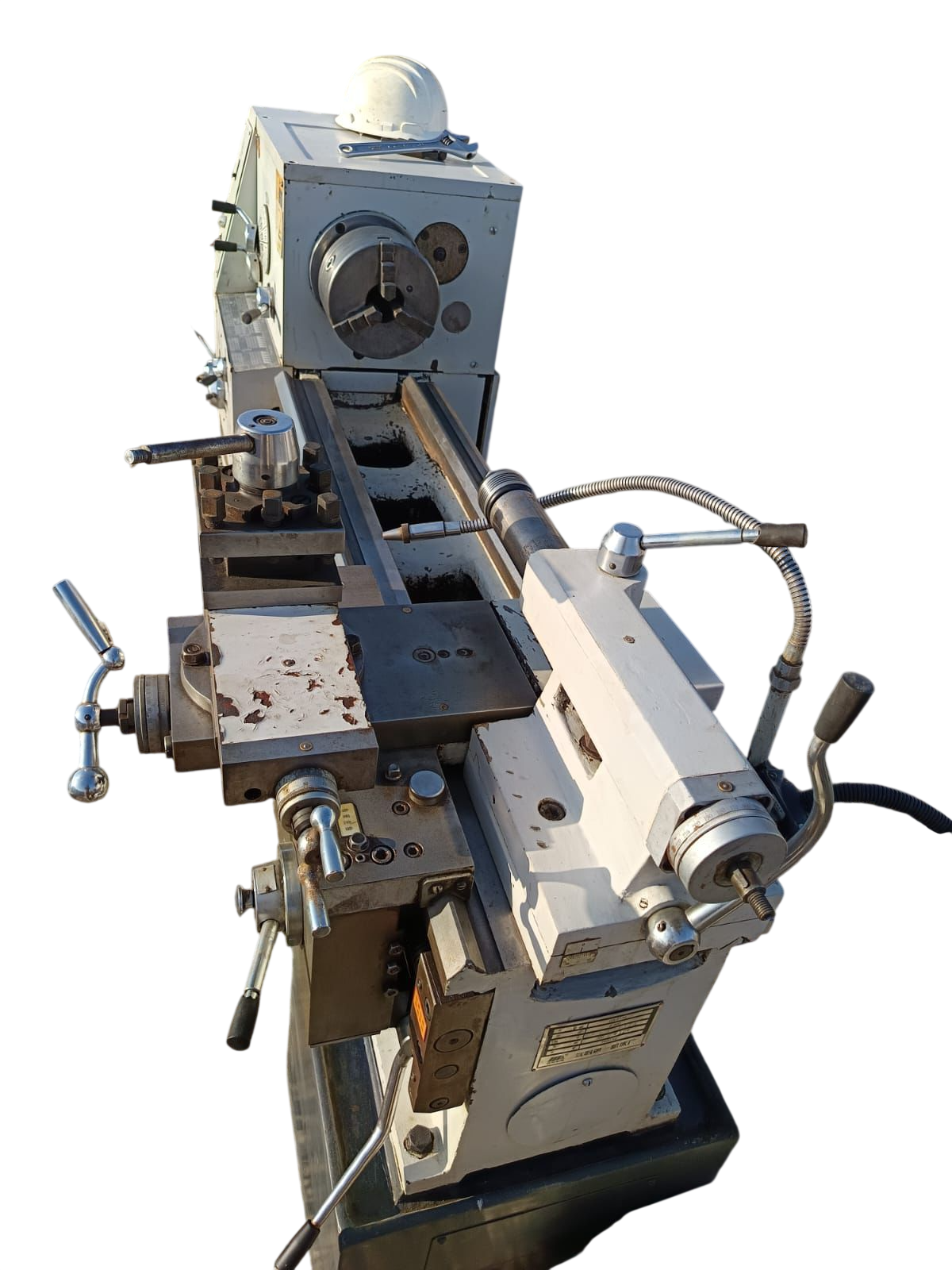

  • Spindle & Chuck: A 3-jaw or 4-jaw manual scroll chuck is mounted to the spindle nose, used to hold and rotate the round metal workpiece
