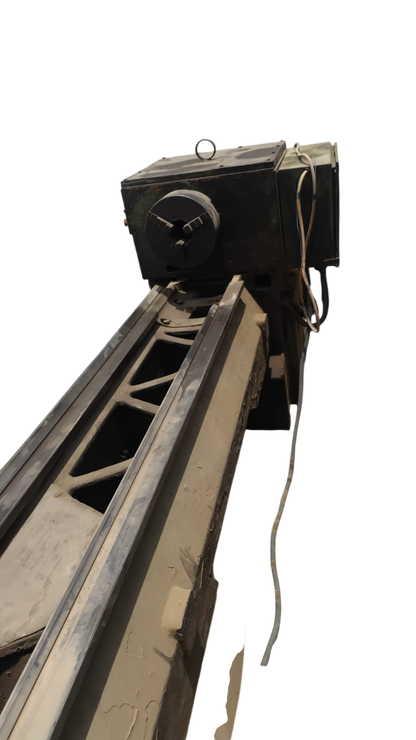

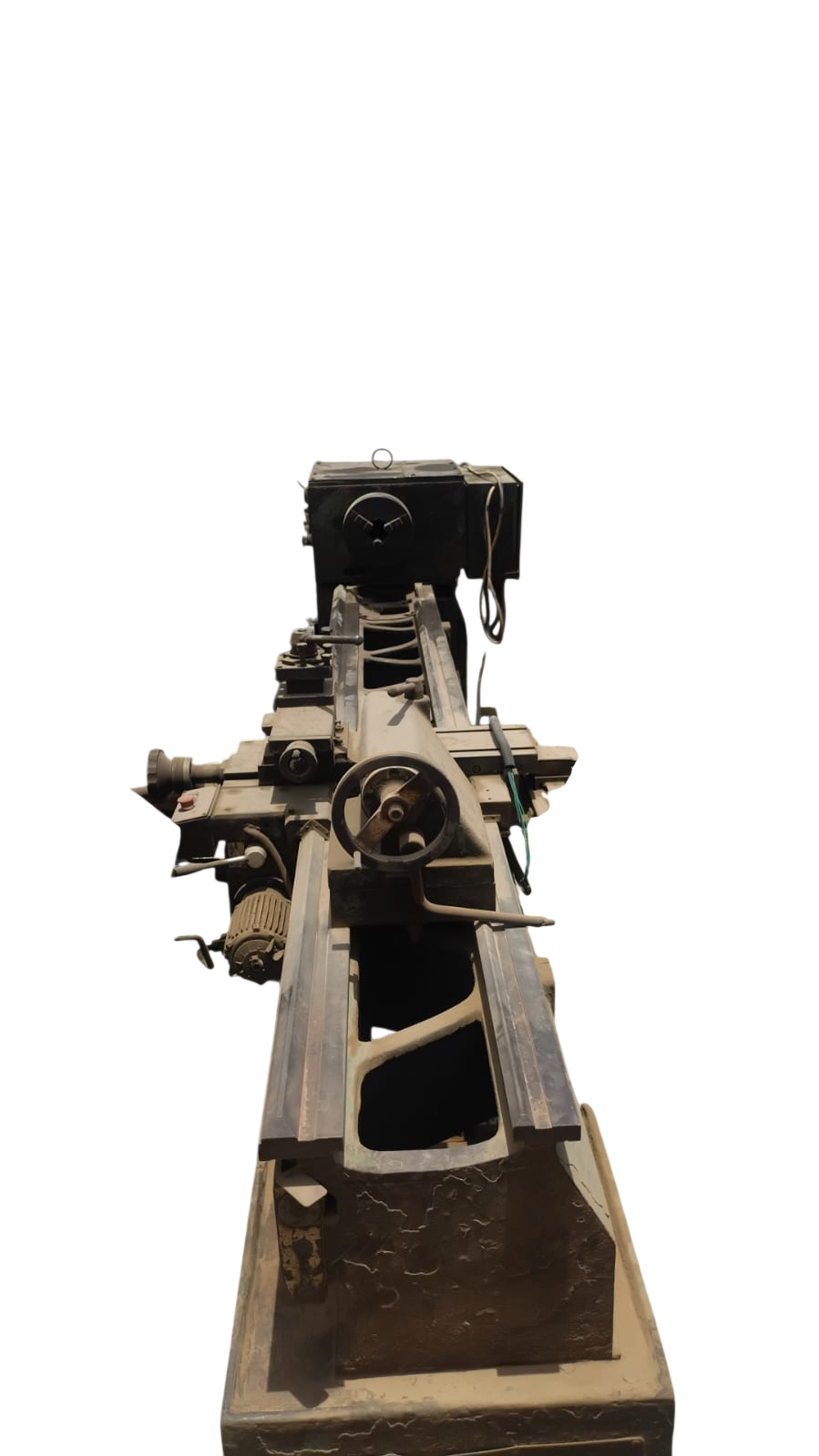

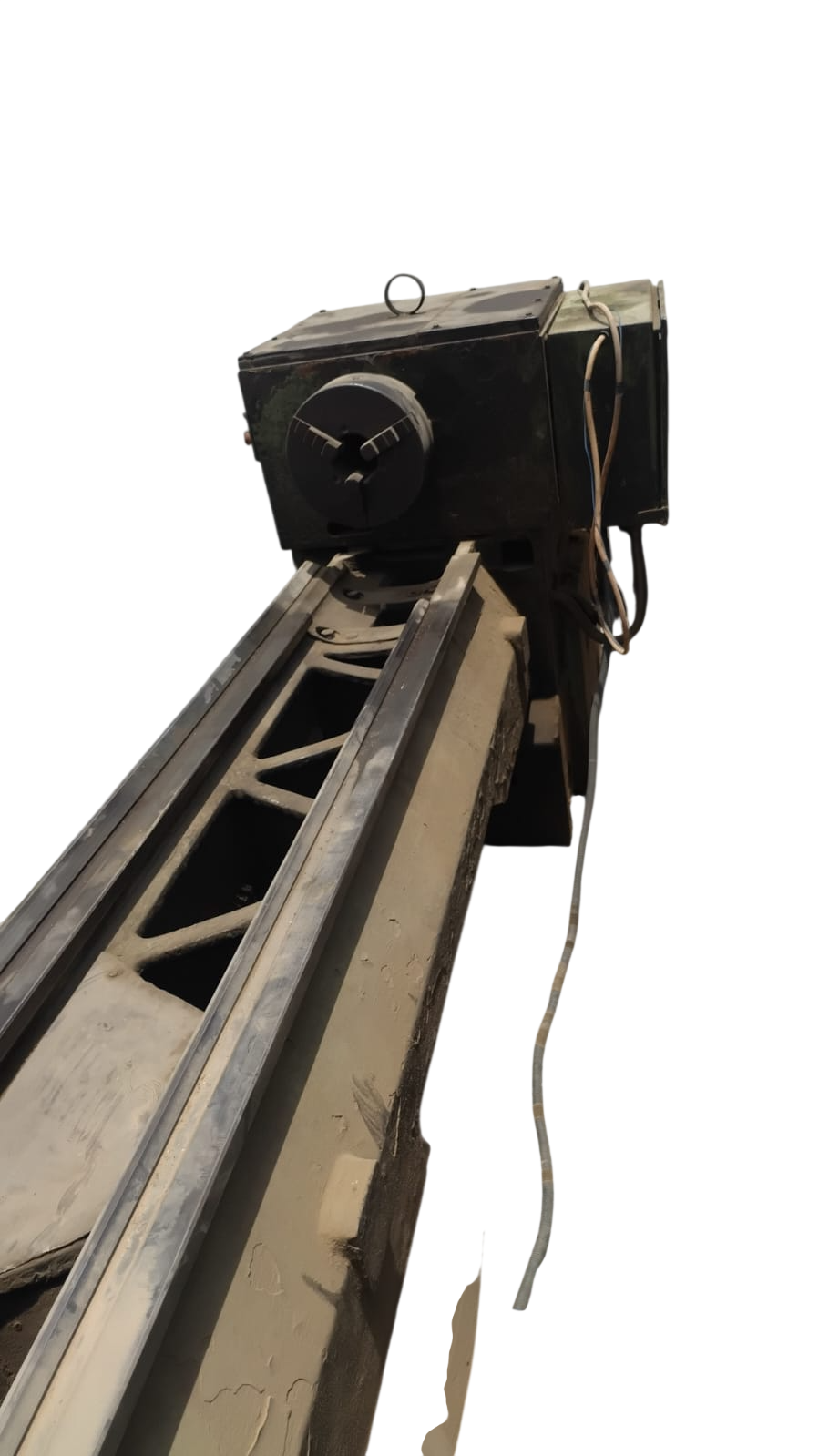

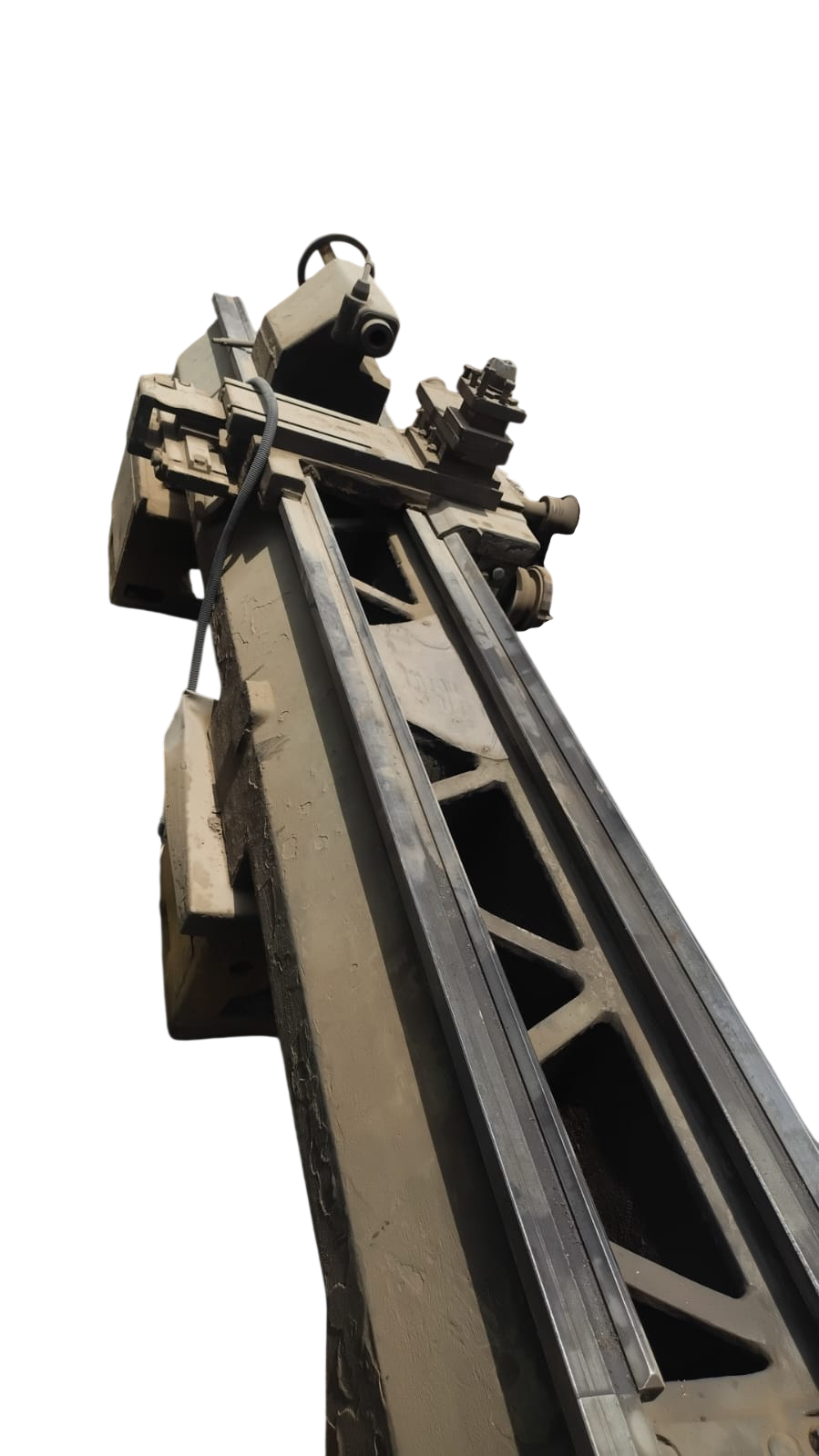

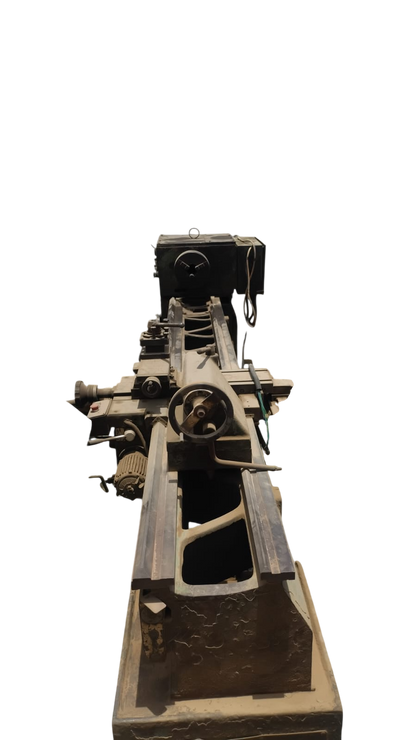

Lathe Machine 3 Meter – Armani Type – Heavy Duty Engine Lathe

General Specifications

• Machine Type: Conventional Engine Lathe Machine

• Brand / Type: Armani

• Country of Origin: European Type (Subject to Nameplate Verification)

• Bed Length: 3 Meter

• Condition: Used – Industrial Working Condition

• Construction: Heavy-Duty Cast Iron Bed

• Application: Turning, Facing, Threading, Boring, Drilling, Shaft Machining

Capacity

Distance Between Centers

• Approx. 3000 mm (3 Meter)

• Suitable for long shafts and heavy workpieces

Swing Capacity

• Swing Over Bed: Approx. 500 – 700 mm

• Swing Over Cross Slide: Approx. 280 – 450 mm

• Maximum Turning Diameter: Up to 600 mm (Approx.)

Workpiece Capacity

• Long Shafts

• Rollers

• Hydraulic Cylinders

• Industrial Components

• Heavy Machine Parts

Spindle System

• Precision Ground Spindle

• Large Diameter Spindle Bore

• Forward and Reverse Rotation

• Gear Head Drive System

• High Torque Performance

Spindle Speeds

• Multiple Speed Ranges

• Approx. 25 – 1600 RPM

• Mechanical Gear Selection

Headstock

• Heavy-Duty Gearbox Construction

• Oil Lubricated Transmission

• Hardened Gears

• Smooth Power Transmission

• Suitable for Continuous Industrial Use

Feed & Threading System

Automatic Feeds

• Longitudinal Automatic Feed

• Cross Automatic Feed

• Multiple Feed Rates

Thread Cutting

• Metric Threads

• Inch Threads

• Fine Threads

• Coarse Threads

• Left-Hand & Right-Hand Threads

Lead Screw

• Precision Lead Screw

• Accurate Thread Production

Carriage Assembly

• Heavy Saddle Construction

• Precision Cross Slide

• Compound Rest for Angular Turning

• Four-Way Tool Post

• Smooth Handwheel Operation

Tailstock

• Heavy-Duty Tailstock

• Adjustable Alignment

• Morse Taper Center

• Suitable for Supporting Long Workpieces

• Quick Locking Mechanism

Electrical Specifications

Main Motor

• Power: Approx. 7.5 – 15 HP

• Voltage: 380V

• Frequency: 50 Hz

• Phase: 3 Phase

Machine Construction

• Heavy Ribbed Cast Iron Bed

• Hardened & Ground Guideways

• High Rigidity Structure

• Excellent Vibration Absorption

• Long Service Life

Machining Operations

• Straight Turning

• Facing

• Taper Turning

• Grooving

• Thread Cutting

• Drilling

• Boring

• Chamfering

• Shaft Machining

• Repair & Reconditioning Work

Suitable Materials

• Mild Steel

• Carbon Steel

• Stainless Steel

• Cast Iron

• Brass

• Bronze

• Aluminum

• Engineering Plastics

Industrial Applications

• Machine Shops

• Heavy Engineering Workshops

• Steel Fabrication Industries

• Maintenance Departments

• Shaft Manufacturing

• Roller Production

• Oil & Gas Equipment Repair

• Industrial Component Manufacturing

Key Features

✔ 3 Meter Between Centers Capacity
✔ Heavy-Duty Cast Iron Construction
✔ Large Swing Capacity
✔ Gear Head High-Torque Transmission
✔ Automatic Feed System
✔ Metric & Inch Thread Cutting
✔ Suitable for Long Shaft Machining
✔ Stable and Low Vibration Operation
✔ Industrial Grade Performance
✔ Ready for Heavy Workshop Use
