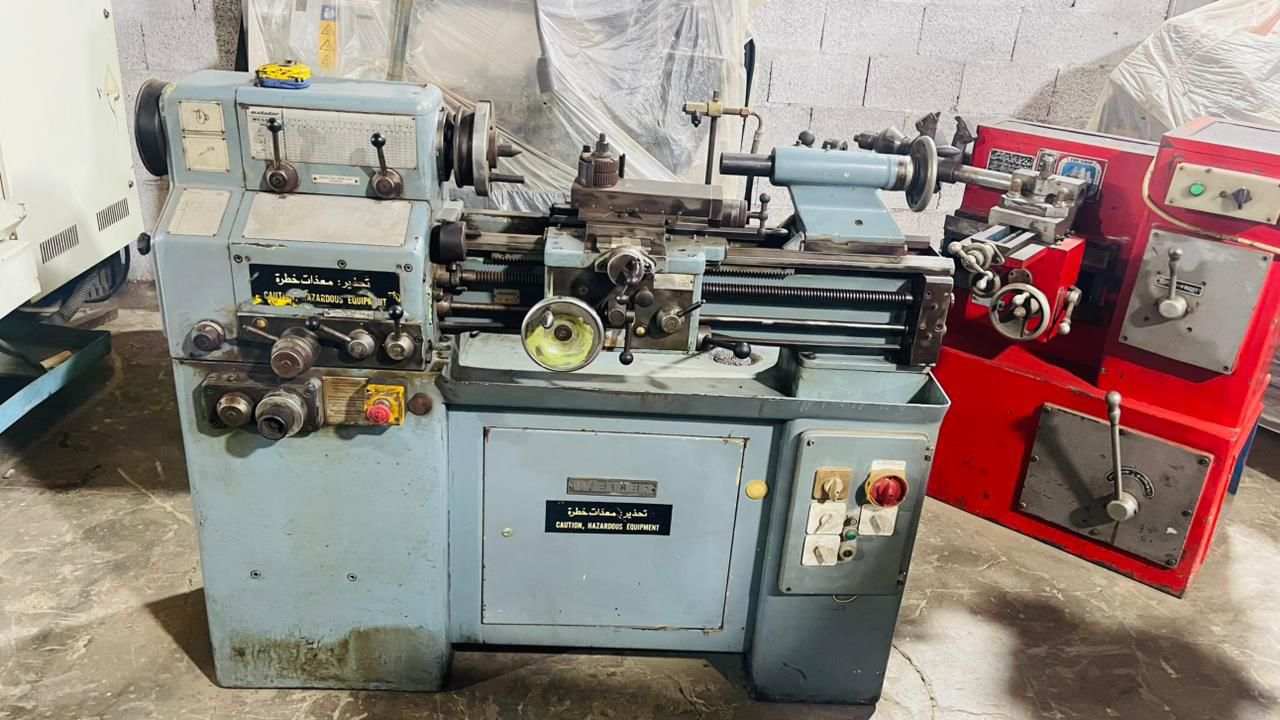

LATHE MACHINE made in Germany working area 40cm

LATHE MACHINE made in Germany working area 40cm

Country of Origin: Germany

General Information

• Machine Type: Engine Lathe Machine
• Application: Turning, Facing, Threading, Drilling, and Boring Operations
• Suitable Materials: Steel, Stainless Steel, Aluminum, Brass, and Cast Iron

Technical Specifications

Working Capacity

• Swing Over Bed: 400 mm
• Distance Between Centers: 400 mm (40 cm)
• Swing Over Cross Slide: 220 mm

Spindle

• Spindle Bore: 52 mm
• Spindle Speed Range: 50 – 2,000 RPM
• Spindle Motor Power: 5.5 kW

Feed System

• Longitudinal Feed: Automatic
• Cross Feed: Automatic
• Thread Cutting: Metric and Imperial

Tailstock

• Tailstock Quill Diameter: 60 mm
• Tailstock Travel: 120 mm

Accuracy

• Turning Accuracy: ±0.01 mm
• Repeatability: ±0.005 mm

Power Requirements

• Power Supply: 380V, 50Hz, 3-Phase

Construction

• Heavy-Duty Cast Iron Bed
• Hardened and Ground Guideways
• Precision Spindle Bearings

Safety Features

• Emergency Stop Button
• Chuck Guard
• Overload Protection

Machine Dimensions

• Length: 1600 mm
• Width: 850 mm
• Height: 1300 mm
• Approximate Weight: 1200 kg

Standard Features

• High Precision Turning
• Smooth Speed Control
• Automatic Feed System
• Low Vibration Operation
• Heavy-Duty Industrial Construction

Included Accessories

• 3-Jaw Chuck
• 4-Jaw Chuck

• Tool Kit
• Machine Manual
