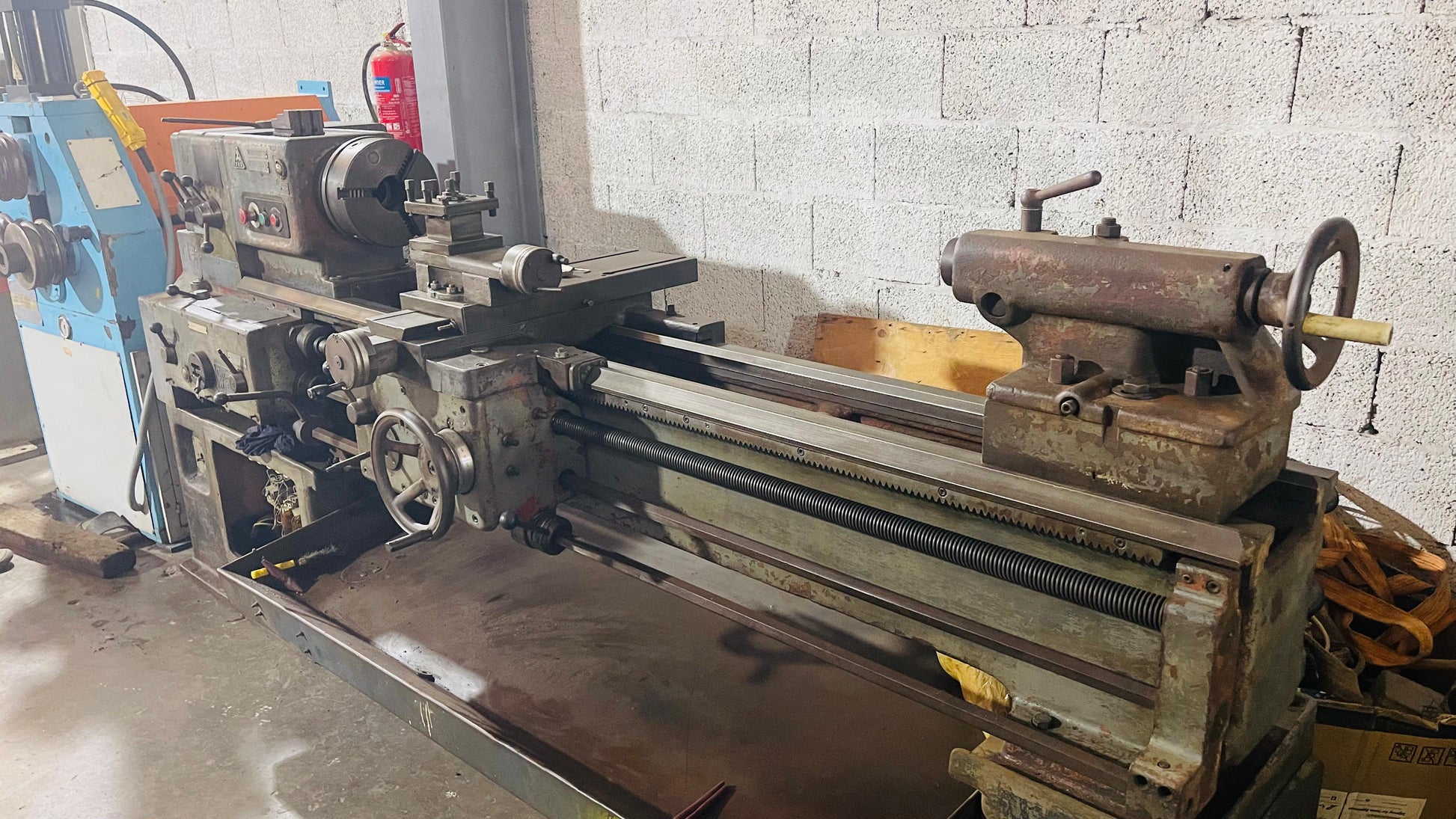

Lathe Machine – Specification (China Made)

Lathe Machine – Specification (China Made)

Machine Type: Engine Lathe Machine

Country of Origin: China

Center Distance (Working Length): 1.5 Meter (1500 mm)

Swing Over Bed: 300 – 500 mm (depending on model)

Spindle Speed: 70 – 2000 RPM (multi-speed gearbox)

Spindle Bore: 38 – 80 mm (model dependent)

Chuck Size: 160 mm – 250 mm (3-jaw / 4-jaw chuck)

Motor Power: 2 HP – 7.5 HP

Bed Type: Heavy duty cast iron hardened bed

Feed System: Automatic longitudinal and cross feed

Tailstock: Manual adjustable tailstock

Application:

• Metal turning work
• Thread cutting
• Shaft machining
• Workshop fabrication

Features:

• Gear driven headstock
• Coolant system (optional)
• High precision machining
