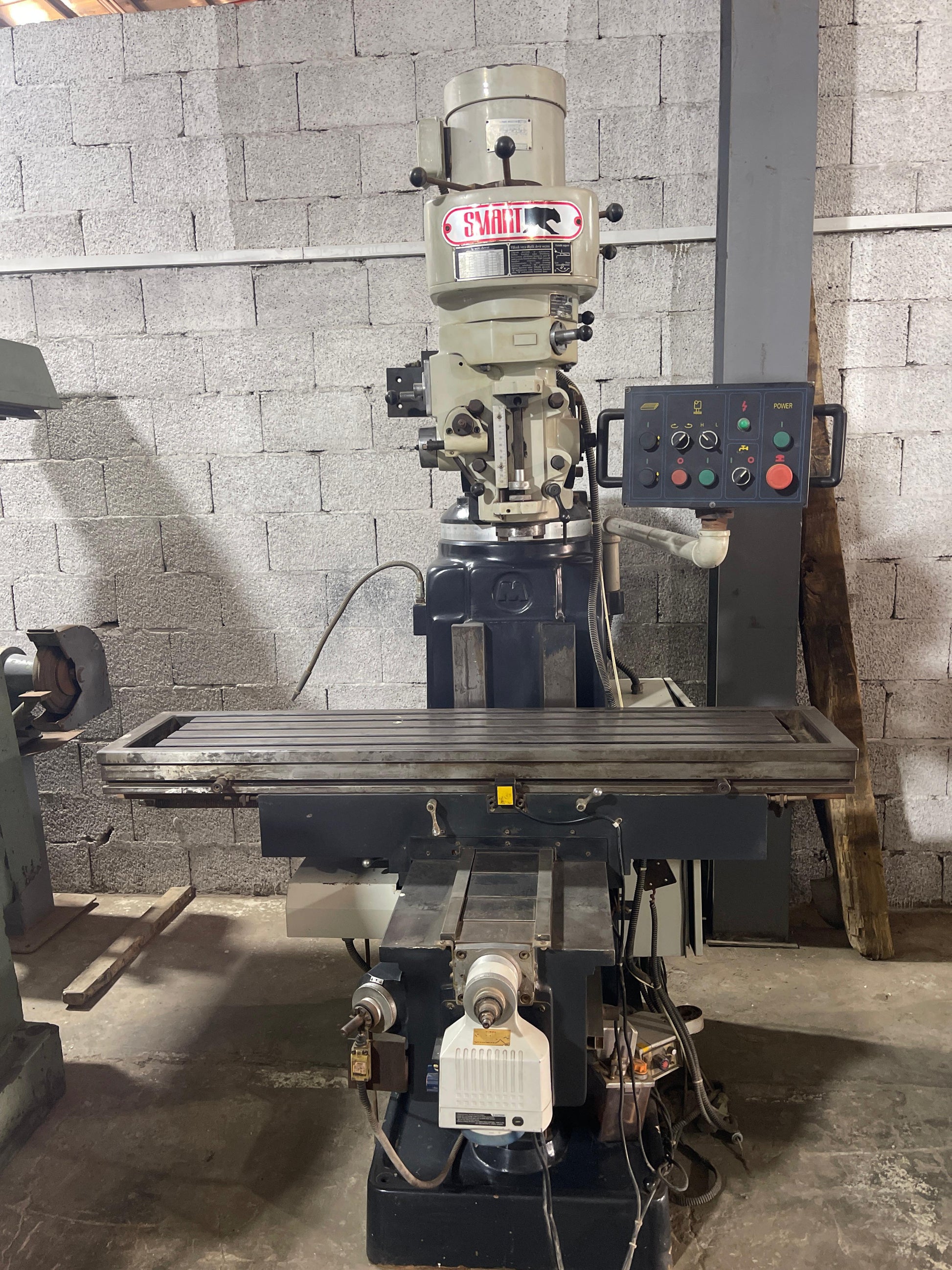

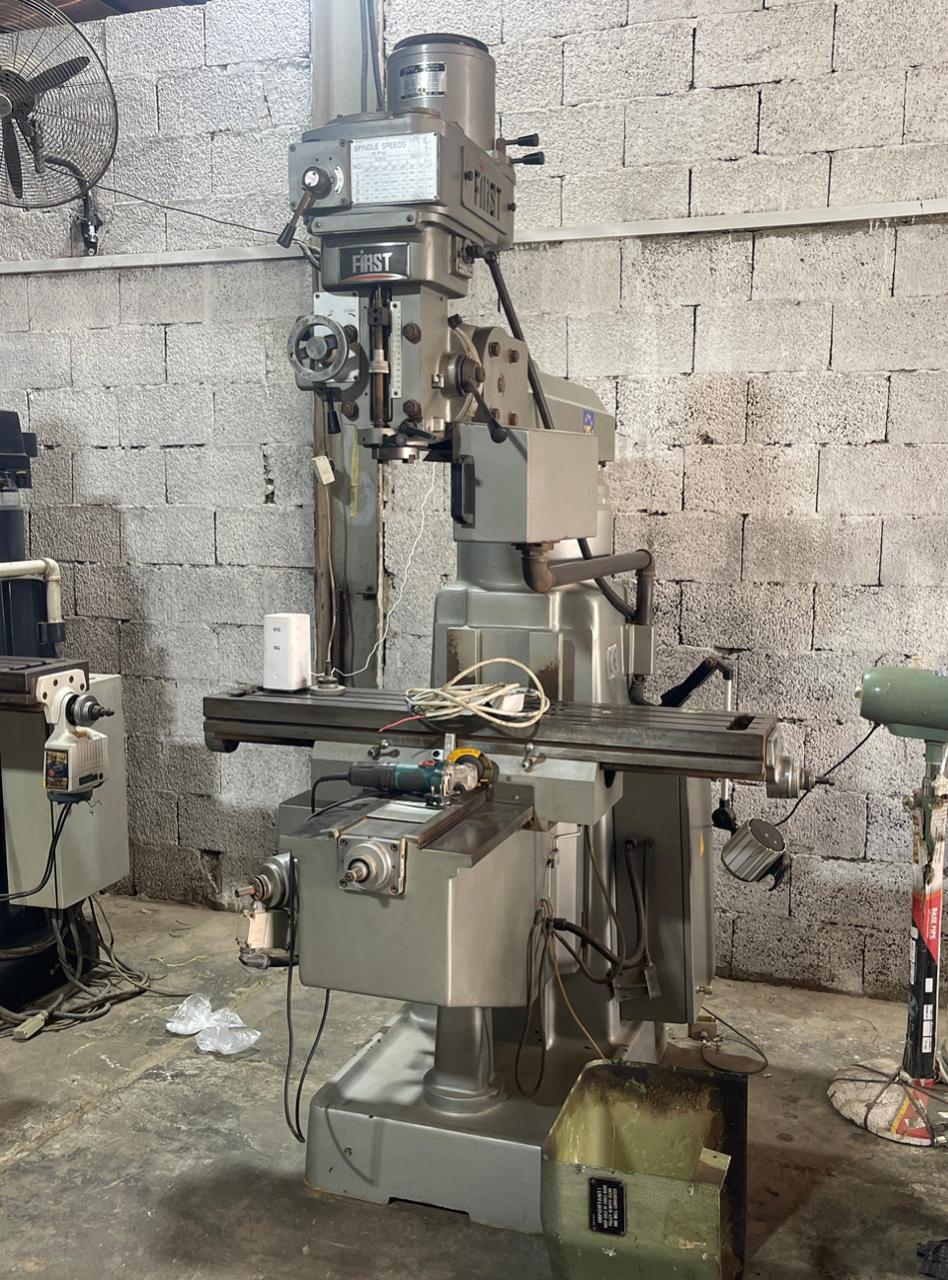

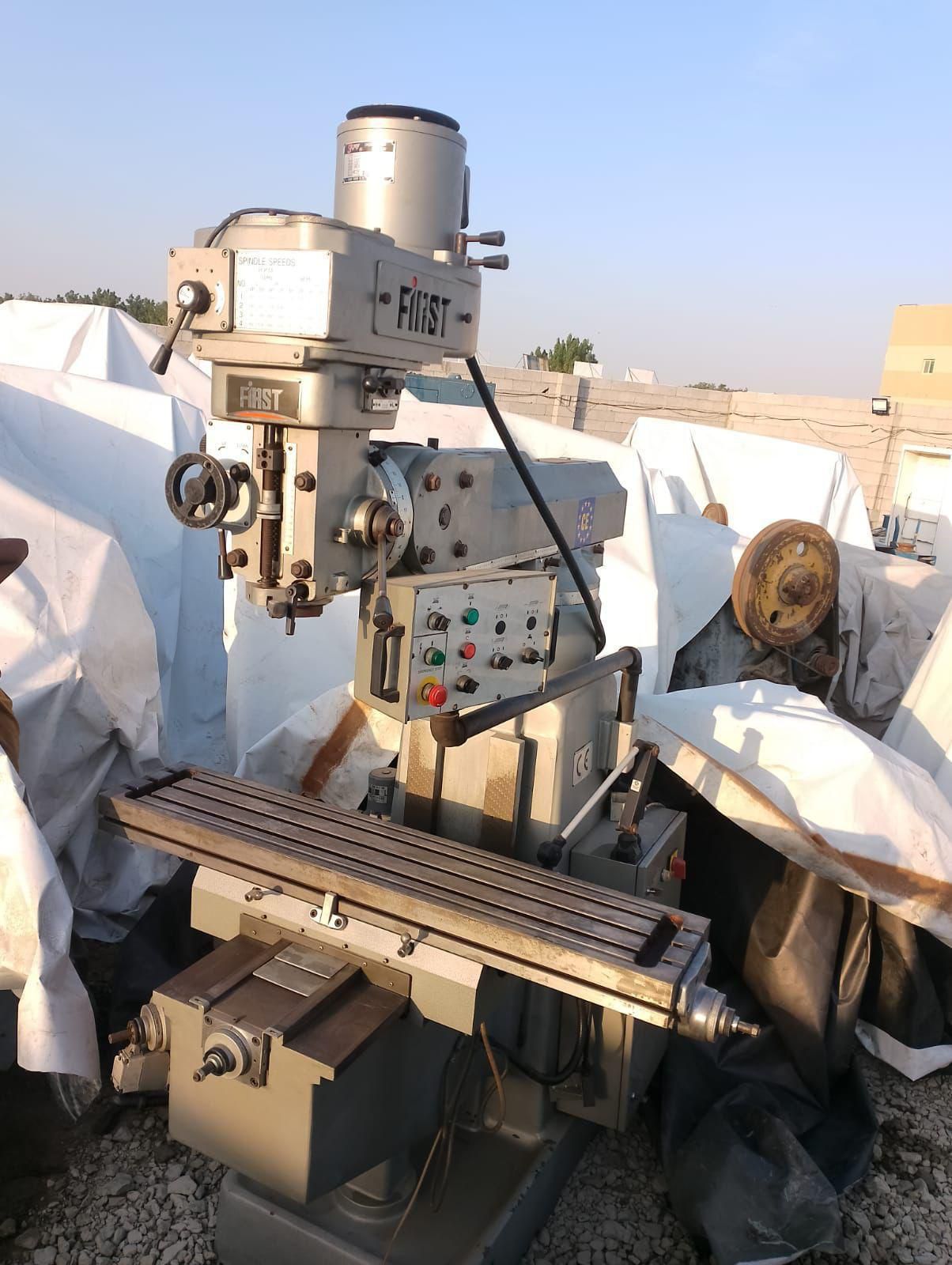

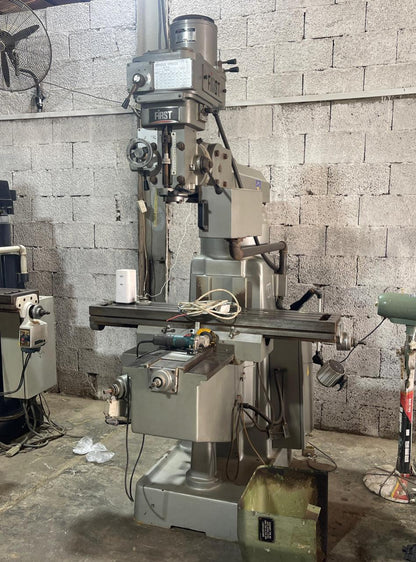

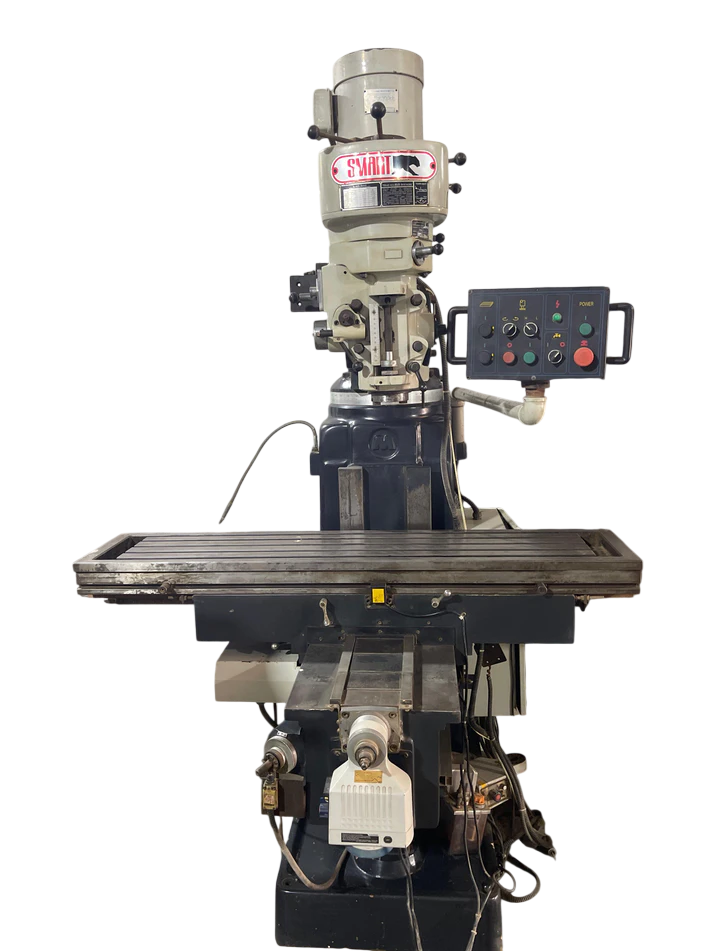

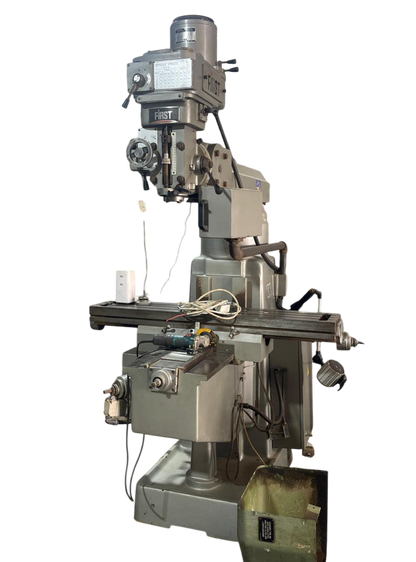

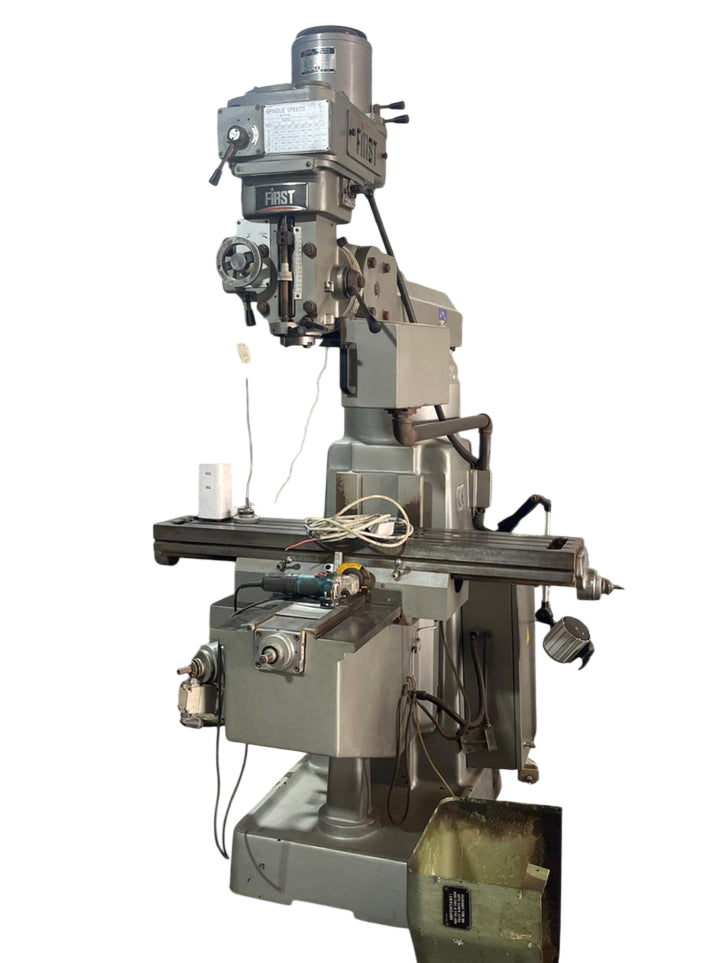

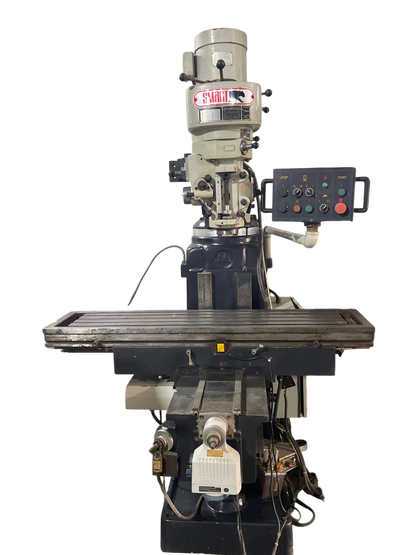

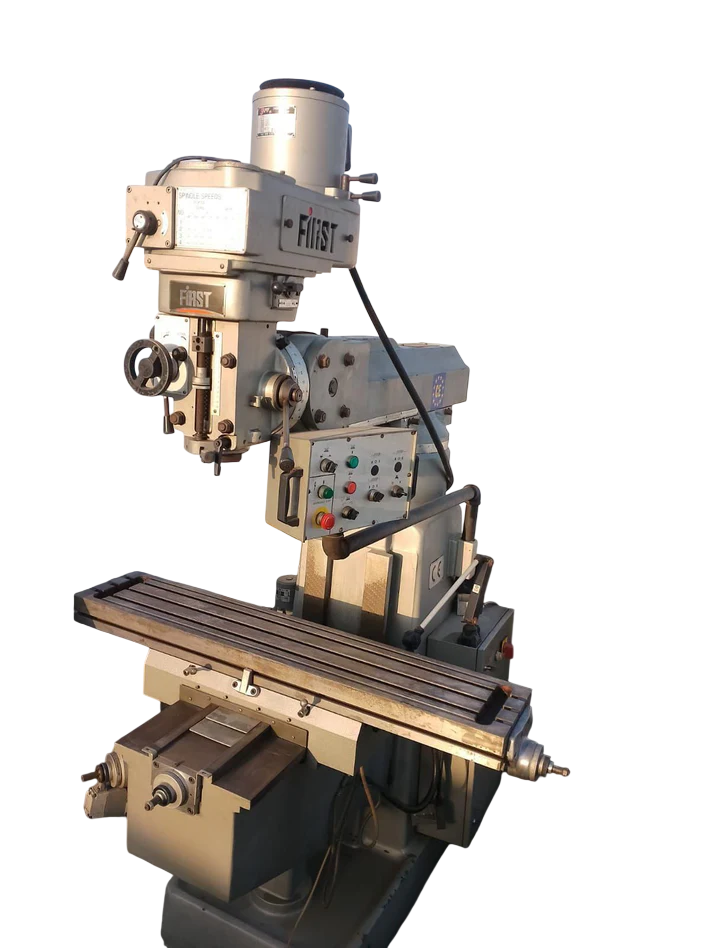

MILLING MACHINE Made in Turkey number 2 Automatic

MILLING MACHINE Made in Turkey number 2 Automatic

Country of Origin: Turkey

General Information

• Machine Type: Automatic Milling Machine
• Application: Milling, Drilling, Boring, and Slotting Operations
• Suitable Materials: Steel, Stainless Steel, Aluminum, Brass, and Cast Iron

Technical Specifications

Working Capacity

• Table Size: 1270 × 300 mm
• Maximum Table Load: 350 kg

Travel Capacity

• X-Axis Travel: 800 mm
• Y-Axis Travel: 350 mm
• Z-Axis Travel: 400 mm

Spindle

• Spindle Speed Range: 80 – 5,400 RPM
• Spindle Taper: ISO 40
• Spindle Motor Power: 5.5 kW

Feed System

• Automatic Longitudinal Feed
• Automatic Cross Feed
• Automatic Vertical Feed

Accuracy

• Positioning Accuracy: ±0.01 mm
• Repeatability: ±0.005 mm

Power Requirements

• Power Supply: 380V, 50Hz, 3-Phase

Construction

• Heavy-Duty Cast Iron Body
• Hardened and Ground Guideways
• Precision Spindle Bearings

Safety Features

• Emergency Stop Button
• Safety Guards
• Overload Protection System

Machine Dimensions

• Length: 1800 mm
• Width: 1700 mm
• Height: 2100 mm
• Approximate Weight: 1800 kg

Standard Features

• Fully Automatic Operation
• Variable Speed Control
• Precision Machining
• Automatic Lubrication System
• Heavy-Duty Industrial Design
• Easy Maintenance

Included Accessories

• Machine Vice
• Tool Kit
• Coolant System
• Work Lamp
• Machine Manual
