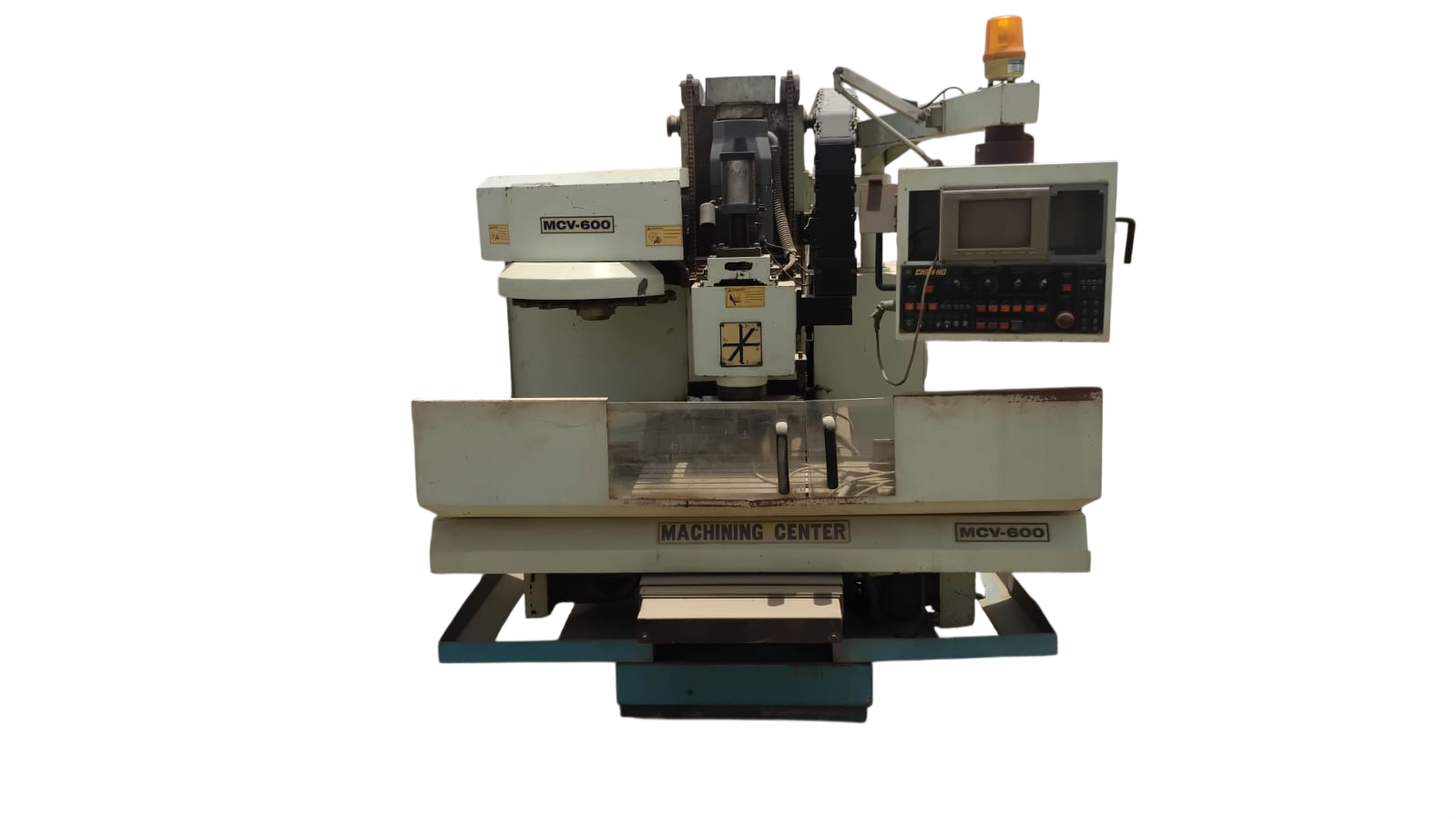

Vertical CNC Machining Center (MCV-600) – CNC Vertical Milling Machine

General Specifications

• Machine Type: Vertical CNC Machining Center

• Model: MCV-600

• Control System: CNC Controller

• Construction: Heavy-Duty Cast Iron Frame

• Condition: Used – Industrial Working Condition

• Application: Precision Milling, Drilling, Boring, Tapping, and Production Machining

• Suitable for Tool Rooms, Mold Manufacturing, and Production Industries

Working Table

Table Specifications

• Table Size: Approx. 700 × 350 mm

• T-Slots: Multiple Precision T-Slots

• Maximum Table Load Capacity: Approx. 250 – 500 kg

• Precision Ground Surface

Axis Travels

• X-Axis Travel: Approx. 600 mm

• Y-Axis Travel: Approx. 350 – 400 mm

• Z-Axis Travel: Approx. 450 – 500 mm

CNC Control System

• Computer Numerical Control (CNC)

• Digital Programming Interface

• Automatic Machining Cycles

• High Precision Positioning

• Multi-Operation Programming Capability

• Memory Storage for Programs

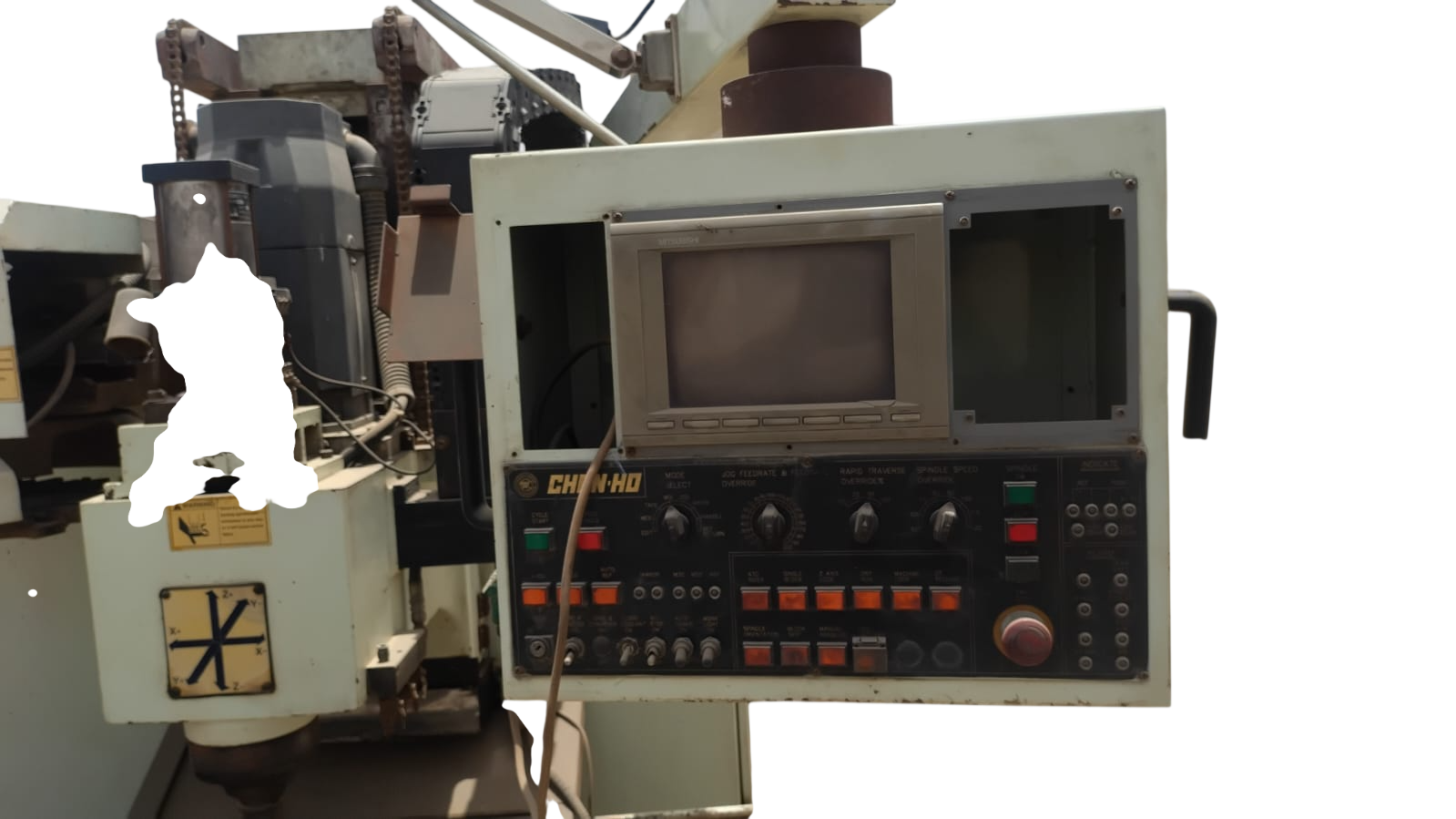

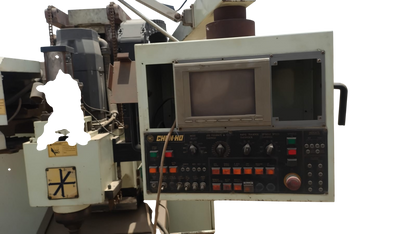

• Industrial Control Panel with Display Screen

Functions

• Automatic Milling

• Automatic Drilling

• Automatic Boring

• Automatic Tapping

• Profile Machining

• Pocket Milling

• Contour Cutting

Spindle System

Main Spindle

• Vertical High-Speed Spindle

• Precision Bearing Support

• Automatic Speed Control

• Forward & Reverse Rotation

Spindle Speed Range

• Approx. 100 – 8000 RPM

• Variable Speed Operation

• High Accuracy Machining Performance

Spindle Taper

• BT40 / ISO 40 (Depending on Model)

Feed System

Servo Driven Axes

• X-Axis Servo Feed

• Y-Axis Servo Feed

• Z-Axis Servo Feed

• High Positioning Accuracy

• Smooth Motion Control

Rapid Traverse

• High-Speed Positioning

• Reduced Machining Time

• Improved Productivity

Tool Changing System

Automatic Tool Changer (ATC)

• Multiple Tool Capacity

• Automatic Tool Selection

• Reduced Setup Time

• Continuous Production Capability

Tool Holders

• BT40 / ISO Tool Holders

• Compatible with Various Cutting Tools

Electrical Specifications

Main Motor

• Power: Approx. 5.5 – 10 HP

• Voltage: 380V

• Frequency: 50 Hz

• Phase: 3 Phase

Servo Motors

• Independent Servo Motors on All Axes

• Precision Motion Control

Coolant & Lubrication System

• Automatic Coolant Pump

• Coolant Tank System

• Central Lubrication System

• Extended Tool Life

• Improved Surface Finish

Machining Operations

Milling Operations

• Face Milling

• End Milling

• Slot Milling

• Pocket Milling

• Keyway Cutting

• Contour Milling

Hole Making Operations

• Drilling

• Reaming

• Boring

• Tapping

Precision Operations

• Mold Manufacturing

• Die Machining

• Precision Component Production

• Complex Shape Machining

Materials Suitable for Machining

• Carbon Steel

• Mild Steel

• Stainless Steel

• Aluminum

• Brass

• Bronze

• Cast Iron

• Engineering Plastics

Machine Construction

• Heavy Cast Iron Structure

• High Rigidity Design

• Excellent Vibration Absorption

• Hardened Guideways

• Precision Ball Screw System

• Long Service Life

Industrial Applications

• CNC Production Workshops

• Mold & Die Manufacturing

• Automotive Components Industry

• Aerospace Components

• Engineering Factories

• Precision Parts Manufacturing

• Maintenance & Repair Facilities

• Industrial Production Lines

Key Features

✔ CNC Controlled Vertical Machining Center
✔ MCV-600 Industrial Model
✔ High Precision Machining Performance
✔ Automatic Tool Changing Capability
✔ Heavy-Duty Cast Iron Construction
✔ Servo Controlled Axes
✔ High-Speed Spindle System
✔ Automatic Coolant & Lubrication System
✔ Suitable for Production and Tool Room Work
✔ Ready for Industrial Operation
