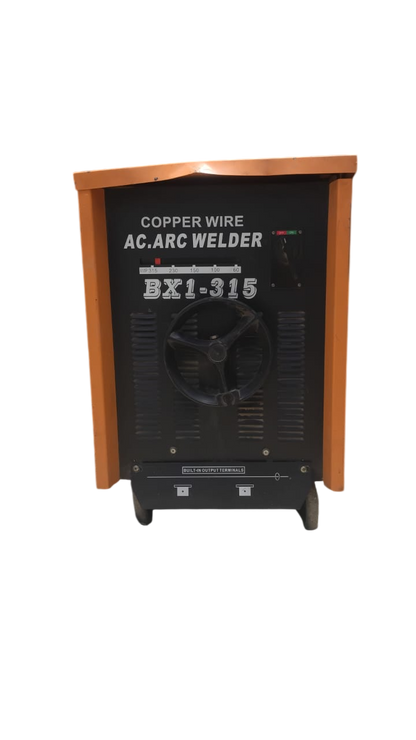

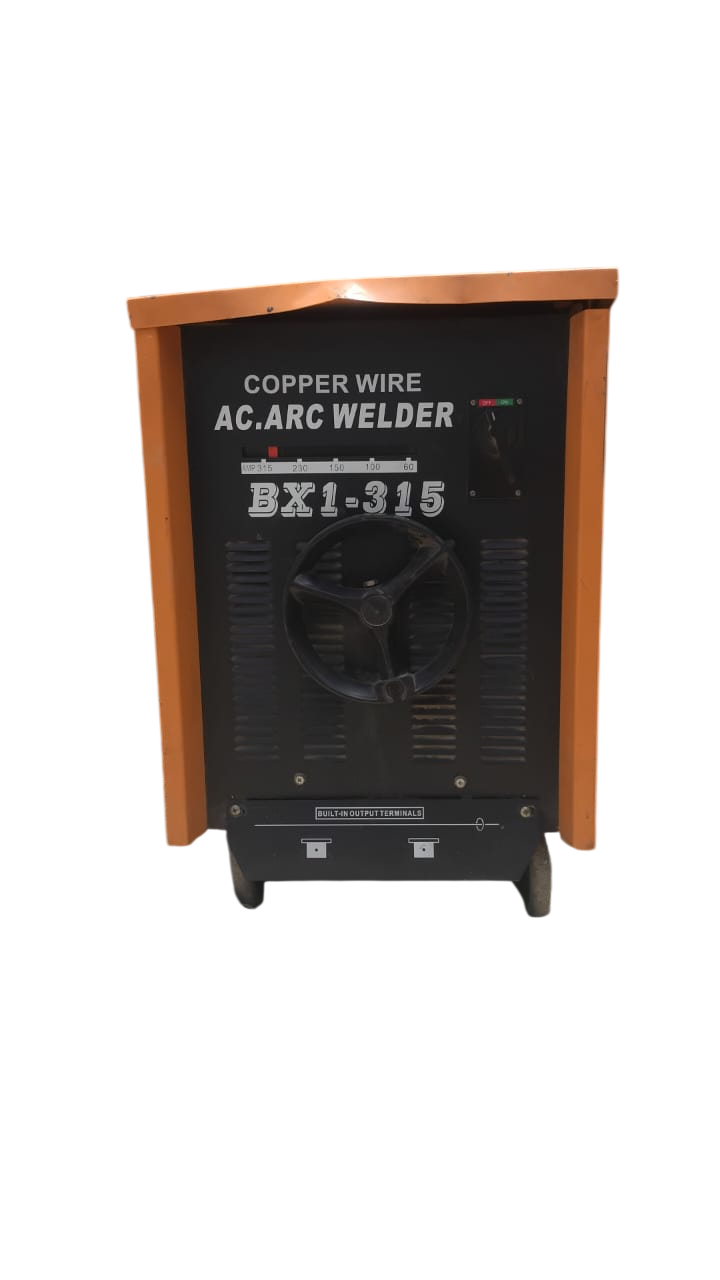

Welding Plant BX1-315 – AC Arc Welding Machine

General Specifications

• Machine Type: AC Arc Welding Machine

• Model: BX1-315

• Welding Method: Shielded Metal Arc Welding (SMAW / Stick Welding)

• Transformer Type: Copper Winding Transformer

• Construction: Heavy-Duty Steel Body

• Condition: Used – Good Working Condition

• Cooling Method: Natural Air Cooling

• Application: Fabrication, Maintenance, Repair Work, Steel Structure Manufacturing

Electrical Specifications

Input Power

• Input Voltage: 380V AC

• Frequency: 50 Hz

• Phase: 3 Phase

• Heavy-Duty Industrial Power Supply

Output Power

• Output Current Range: 60 – 315 Amps

• Open Circuit Voltage: Approx. 50 – 70V

• Smooth Arc Performance

• Adjustable Current Control

Welding Capacity

Electrode Size Compatibility

• 2.0 mm Electrodes

• 2.5 mm Electrodes

• 3.2 mm Electrodes

• 4.0 mm Electrodes

• 5.0 mm Electrodes

• 6.0 mm Electrodes

Material Thickness

• Thin Steel Sheets

• Medium Structural Steel

• Heavy Steel Sections

• Fabrication Components

• Industrial Equipment Parts

Current Adjustment System

• Manual Current Adjustment Wheel

• Smooth Current Regulation

• Wide Amperage Range

• Easy Setting Selection

• Stable Welding Arc

Output Scale

• 60A

• 100A

• 150A

• 230A

• 315A

Transformer Construction

• Heavy Copper Winding Transformer

• High Thermal Efficiency

• Long Service Life

• Stable Current Output

• Suitable for Continuous Industrial Operation

Cooling System

• Ventilated Side Panels

• Efficient Heat Dissipation

• Continuous Duty Performance

• Reduced Overheating Risk

Machine Construction

• Heavy-Duty Metal Cabinet

• Industrial Grade Components

• Strong Wheel-Mounted Base

• Easy Workshop Mobility

• Impact Resistant Design

Suitable Welding Materials

• Mild Steel

• Carbon Steel

• Structural Steel

• Iron Sections

• Steel Pipes

• Steel Plates

• Heavy Fabrication Components

Welding Applications

Fabrication Work

• Steel Gates

• Doors and Windows

• Steel Frames

• Structural Fabrication

Industrial Applications

• Workshop Maintenance

• Equipment Repair

• Machine Base Fabrication

• Construction Projects

Manufacturing Applications

• Steel Structures

• Industrial Tanks

• Pipe Welding

• General Engineering Work

Safety Features

• Thermal Protection Design

• Insulated Electrical Components

• Stable Output Current

• Heavy-Duty Connection Terminals

Key Features

✔ BX1-315 Industrial Welding Plant
✔ Heavy Copper Winding Transformer
✔ Output Current up to 315 Amps
✔ Suitable for 2.0 – 6.0 mm Electrodes
✔ Strong and Stable Welding Arc
✔ Heavy-Duty Steel Construction
✔ Easy Current Adjustment System
✔ Reliable Industrial Performance
✔ Long Service Life
✔ Ready for Workshop and Site Use
